Sany 49m Truck Mounted Concrete Pump Syg5360thb 49

Product Description

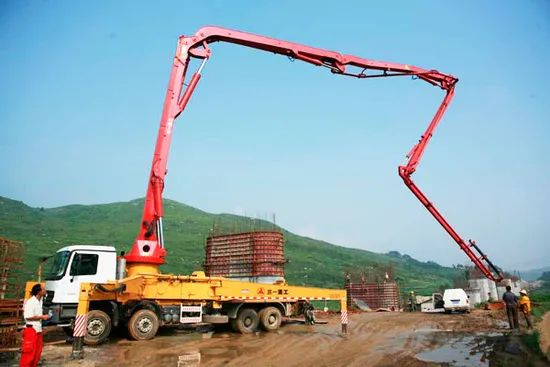

SANY 49m truck mounted concrete pump SYG5360THB 49
Dimensions
Length 12500 mm
Width 2500 mm
Height 4000 mm
Empty weight 36450 kg
Boom & Outrigger
Vertical reach 48.6 m
Horizontal reach 43.6 m
Reach depth 30.8 m
Unfolding reach 13.9 m
1st section-Length9760 mm
1st section-Articulation 89°
2nd section-Length 7670 mm
2nd section-Articulation 180°
3rd section-Length 7410 mm
3rd section-Articulation 180°
4th section-Length 9670 mm
4th section-Articulation 235°
5th section-Length 10060 mm
5th section-Articulation 215°
Rotation ±360°
Outrigger spread L-R-Front 9300 mm
Outrigger spread L-R-Rear 9620 mm
Pumping System Output (Low/High-pressure) 170/120 m³/h
Pressure (Low/High-pressure) 8.3/12 Mpa
Max. strokes per minute (Low/High-pressure) 29/19 times/min
Delivery cylinder diameter 260 mm
Stroke length 1900 mm
Hydraulic system Open
Hydraulic system pressure 32 Mpa
Hydraulic tank capacity 680 L
Water tank capacity 620 L
Pipe size 125 mm
End hose length 3 m
End hose diameter 125 mm
Chassis
Chassis model BENZ Actros 4141
Engine model OM501LA./17
Engine power 300/1800 kW/rpm
Emissions Euro
Fuel tank capacity 400 L
Displacement 11.946 L
Max.speed 80 km/h
Brake distance ≤10/30 m/km/h

---
