Hg28 Stationary Self Climbing Concrete Placing Boom Concrete Distributor

Product Description

The concrete placing boom is an ideal device to assist the trailer concrete pump and truck-mounted concrete pumps. It is used to enlarge the pouring range of the concrete. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.

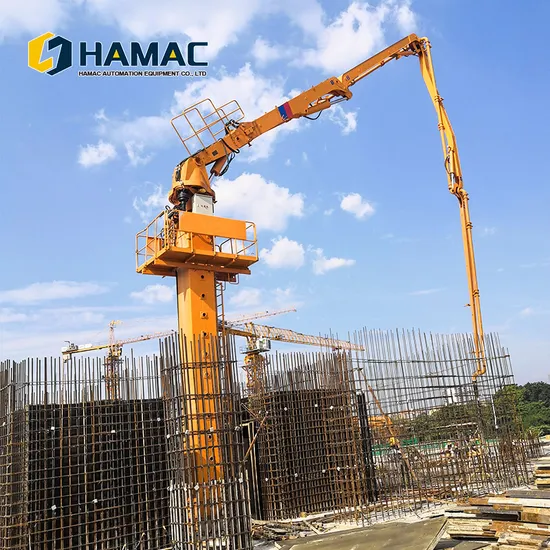

The self-climbing concrete placing boom machine is fixed in the elevator shaft and is equipped with an automatic climbing mechanism. Featuring a hydraulic self-climbing system, the placing boom is able to climb up alongside the lift shaft in the building with the rise of floor levels. The vertical reach of the placing boom relies on the performance of your concrete pump.
It is lifted by a hydraulic cylinder and automatically climbs in the elevator shaft, so that the concrete boom placer rises with the rise of the floor. It also can be fixed in the floor directly if there is not an elevator shaft.
The factors need to be considered for selecting a concrete placing boom for sale
There are several more related factors to be considered for selecting the suitable placing boom as below The length and width of the working project; Then you can see how many meters placing radius you need; Your budget and efficiency you need; Then we can see which type you select, manual concrete placing boom or hydraulic one; Height of the building; For the high building, its length and width is also big, the self-climbing concrete placing boom with 24-36 m placing radius is recommended; If there is a tower crane near the building? If yes, one spider type concrete placing boom can be considered because it can be lifted and moved by the tower crane; What is concrete placing boom price?
The price of the concrete placing boom for sale is related to the model and configuration specifications, such as: the coverage area (placing radius) and configuration. At present, there are three types of distribution machines in the market: manual type placing boom, mobile spider concrete placing boom, and self-climbing placing boom. The use method and effect of a placing boom machine are also different, so the price is also different. The manual concrete placing boom is the cheapest one. It has a simple structure and low cost. The time of delivery is about 3 days. It is fully manual operation, so the cost is low and the price is relatively cheap. The models are 12 meters, 15 meters, and 18 meters. Three specifications, prices ranging from 2000-3000USD; The hydraulic placing boom machine is also an intelligent placing boom machine, and it is also a one-time pouring and molding equipment for concrete on the market. It is also a time-saving, labor-saving and high-efficiency equipment for concrete pouring. One person can perform concrete pouring, which is more than three times the efficiency of traditional concrete pouring. The model is also a relatively comprehensive placing machine, from 13 meters to 36 meters (placing radius), because the price of full hydraulic intelligent operation is relatively high, the price is more than USD20000, and the detailed price needs to be confirmed with concrete placer boom manufacturer's sales manager.

Item	HG28	HG32
Max. Placing Radius (M)	27.5	32
Big Arm Length (M)	12.6	14.5
Big Arm Elevation (°)	0-65	0-65
Medium Arm Length (M)	8.8	9.2
Medium Arm Elevation (°)	0-180	0-180
Small Arm Length (M)	6.1	8
Small Arm Elevation (°)	0-180	0-180
Hose Length (M)	3	3
Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6
Tail Rotary Radius (M)	3.9	-
Total Power (Kw)	5.5	15
System Pressure (Mpa)	24	24
Rotary Speed (R/Min)	0.3-0.8	0.3-0.8
Rotary Range (°)	0-360	0-360
Lifting Speed (M/Min)	0.65	0.65
Lifting Height(M/Time)	≤3.6	≤3.6
Overall Height (M)	12.6	22.9
Bare Machine Weight (Kg)	10720	16700
Balance Weight(Kg)	4×2000	-

---
