Fabric Needle Punching Machine for Nonwoven

US$11,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
GM
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
Product
300--800 G /Sqm
Transport Package
Export Standard Packaging
Specification
2600mm
Trademark
RD
Origin
China
HS Code
8449001090
Production Capacity
400 Sets / Month

Product Description


Fabric Needle Punching Machine For Nonwoven
Needle punching machine
1.Usage and Features of Non woven Felt Making Machine
1. The needle punching machine unit consists of one simple tearing machine GM400,
one simple carding machine GM450 with chute feeder, 1 / 2 / 3 / 4 sets needle punching machine
with winder and cutter GMZ2600.
The necessary parts include 1set Fan motor, 3sets Main motors, 3sets Speed reducers and
1 set Electric control panel board.
2. The needle punching machine unit can make non woven fabric; It can convert fleeciness fiber or
cotton into needle punched cotton, such as sofa cushion, spring mattress, carpeting and blanket.
3. Working width adjustable; Thickness adjustable.

2. Advantages of Non woven Felt Making Machine
The machine adopts crankshaft balance oil tank, automatic circulaation and imbrications. with up
and down integrity, compact and unipue structure, convenient frequency ad well as its efficiency.
Width can be adjusted, speed adjustable, thickness can be adjusted, strong degree adjustable etc.

3. Main Technical Data of Non woven Felt Making Machine
whole production line of Non woven Felt Making Machine
Floor Space(L*W*H)
7000*4500*4000mm
Total Weight
3800kg
Matched Rated Power
4kw+7.5kw*3+1.5*3kw
Product width(Adjustable)
Max2.5m
Output
3-8m/min
Needle travel
35-45mm
Thickness
5-8 mm
GSM
300-500 g/m2
Opening Machine GM400(With motor & speed reducer)
Weight
500kg
Size(L*W*H)
2040*1500*1030mm
Roller Diameter
440mm wooden 400mm Iron
Carding Machine GM450(With motor & speed reducer)
Roller
Iron roller
Roller Diameter
450mm
Weight
1400kg(wooden roller)
Size(L*W*H)
2900*1100*1250mm
Chute feeder
2600*320*2450mm
Needle Machine with winder and cutter GMZ2600(With motor & speed reducer)
Weight
1800kg
Size(L*W*H)
3000*700*2300mm
Needle number
5000 / 6000pcs
(According to user's requirement)
Needle board
Chromed needle plate hole size:5mm(according to user requirement)
Chromed needle plate


Note: we can design and manufacture as client's requirement.

4.Pictures

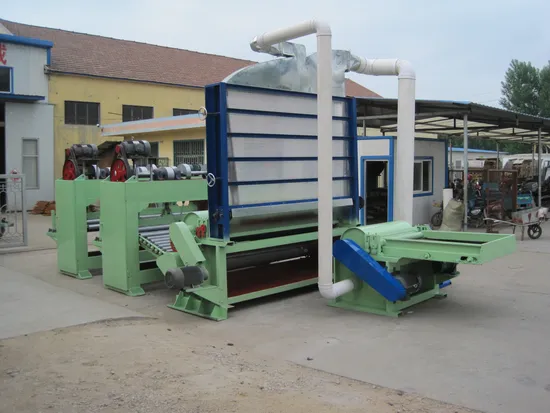

1 simple tearing machine(opening machine) + 1 simple carding machine + 2 punching machine
Products--non woven felt
