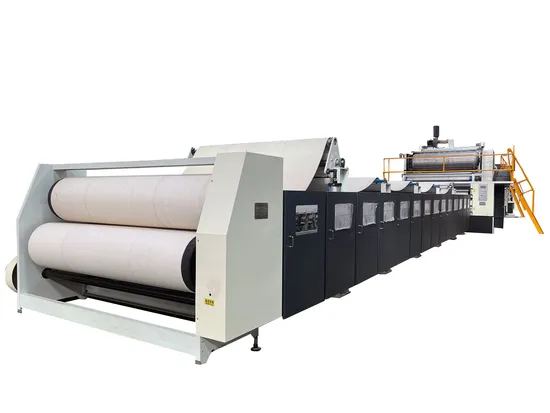

Good Price Corrugated Cardboard Double Facer Machine for Production Line

Product Description

Double Facer Machine For 5Ply Corrugated Cardboard Paperboard Production Line Product Description

No.	Name	Qty	Feature
1	Hot plate	1	--Main frame is 300 mm GB channel steel --Hot plate 600 mm 14 pcs
2	Cooling part	1	--5M cooling section --The upper and lower belt correct automatically --Temperature display
3	Mian drive	1	--Main drive Frequency motor drive
4	High speed belt	1	--Good quality high speed cotton woven belt

1.Machine Description:
*Corrugated paper enter into the double facer hot parts with heating and molding after pasted glue, and become board after cooling
2.Machine Function:
*Hot Plates width 520mm and 10 pics,cooling parts 4m
*Heat conductive pipe of hot plates control the temperature segmented,with the temperature display
*The inside of the hot plate is partition isolation structure,making the steam flow in S-shaped direction, and the separation function of steam and water is obvious,then improves the steam usage efficiency
*Up belt adopt double cylinder S type tension device,down belt manual tension device(small amount adjust)
*Drive rollers' surface is wrapped by rubber with middle height,to make sure the board output smoothly
*Main drive motor: Variable frequency motor, high force when low speed start, high speed adjusting range, steady to use,easy to mend
*The electrical components adopt international famous brands, working stably and reliable
Product Parameters
3.Machine Technical Parameter:

Working Width	1600mm-2200mm
Steam Pressure	0.8-1.3Mpa
Air Pressure	0.6-0.9Mpa
Up Drive Roller	Φ525mm
Down Drive Roller	Φ525mm
Front Driven Belt Roller	Φ320mm
Back Shaping Driven Belt Roller (Down Belt Tension )	Φ215mm
Shaping Holder Roller	Φ86mm
Note: All the surfaces of the rollers are ground and then chromed plated

Company Profile
Our Advantages
After Sales Service
FAQ
Q: Are you a factory or a trading company?A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour.Q: How do you ensure your quality?A: 1. Trustworthy and long-term cooperative raw material suppliers;2. Skilled&experienced engineer&workers;3. Mature QC system;4. Specially-assigned merchandiser;5. Advanced production workshop.Q: How about your after-sale service?A: 1. Special after-sale team will be 24/7 online;2. Can guide the installation door-to-door;3. One-year warranty for spare parts.

---
