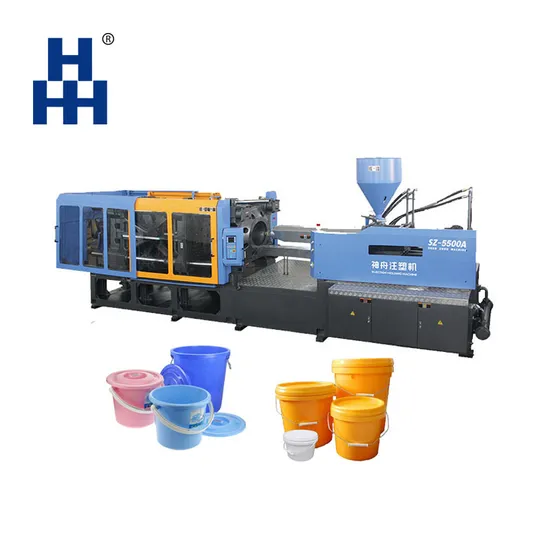

High Quality Full Automatic Servo 5L Plastic Paint Bucket Lid and Handle Making Injection Molding Machine

Product Description

Product Description
Detailed Photos

ITEM		UNIT	SZ-2400A
INJECTION UNIT
	SCREW DIAMETER	mm	55	60	65
	SCREW LID RATIO	L/D	22.9	21	19.4
	THEORETICAL SHOT VOLUME	CM3	665	791	929
	SHOT WEIGHT(PS)	g	605	720	845
	INJECTION PRESSURE	Mpa	210	176	150
	THEORETICAL INJECTION RATE(PS)	g/s	176.5	210	245
	PLASTICISING CAPACITY	g/s	26.4	32.5	40
	SCREW TORQUE	N.m	2000
	MAX.SCREW ROTATE SPEED	r/min	150
	INJECTION STROKE	mm	280
CLAMPING UNIT
	MAX.CLAMPING FORCE K	KN	2400
	MAX.OPENING STROKE	mm	530
	SPACE BETWEEN TIE BARS	mm	555×555
	MOULD HEIGHT	mm	200-570
	MAX.DAYLIGHT	mm	1100
	EJECTOR FORCE	KN	61.5
	EJECTOR STROKE	mm	135
	EJECTOR QUANTITY		9
	PUMP MOTOR POWER	KW	22
	PUMP PRESSURE	Mpa	16
	HEATING POWER	KW	18.5
	HEATING ZONE		5
	SIZE	m	6.2×1.6×2.1
	NET WEIGHT	t	8.0
	OIL TANK CAPACITY	L	440
	INTERNATIONAL DESIGNATION		2400-1390

packaging
FAQ
1Q.Do you have an entity factory?
A1 Yes,We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine?
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.

---
