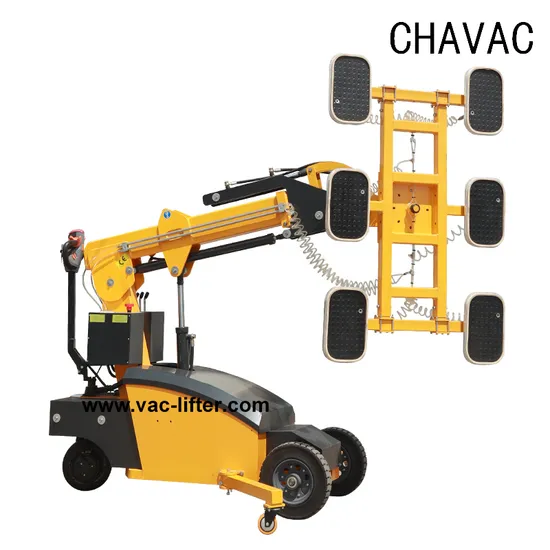

Gl-Ld-800 Saga First Motor Driving Glazing Robot Electric Vacuum Suction Cup Glass Lifter for Marble Metal Sheet

Product Description

Lifting Heavy Panel Drivable Glass Vacuum Lifter for USA EU Au
(Professional Manufacturer)
Sagafirst Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
Features & Advantages:
- Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
- DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
- Attractive price, staff saving, strong improvement of working environment.
- There are 3 models available, GL-LD, GL-HD and GL-FC-6035 suits for different working environments.
GL-LD light duty vacuum lifter, small size, easy to transport.
Description:
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Specifications:

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract)/175kg(extend)	600kg (retract)/300kg(extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120A
Controller	VST224-15	CP2207A-5102
Drive motor	24V/600W	24V/900W
Hydraulic power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

GL-HD heavy duty vacuum lifter, easy to move around,
Description:
Self-propelled drive, Higher lift cap. is available upon request. Electric side shift 100mm both right & left. Electric tilting forwards & backwards from vertical to horizontal or reverse. Suction plate is manual rotating.
Specifications:

Model	GL-HD-4020	GL-HD-6030	GL-HD-8040
Max. Load Cap.	400kgs	600kgs	800kgs
Safe Load Cap.	200kgs	300kgs	400kgs
Lift H.	1500mm	1500mm	1500mm
QNTY of Caps	4	6	8
Cap Diameter	Ø300mm	Ø300mm	Ø300mm
Max. Plate Size	2440x1830mm	2440x1830mm	3660x2440mm
Drive Motor	24V/500W	24V/700W	24V/900W
Hydromatic Motor	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/100Ah	2x12V/160Ah
Charger	24V/10A	24V/15A	24V/20A

Certification:
Frequently Asked Questions:
1.How can the customer buy parts once it breaks down?
The aerial aluminum lift platform adopts most of the common parts of hardware. You can buy the parts in your local hardware market.
2.How can the customer repair the aerial aluminum lift platform.
One of the great advantages of the equipment is a very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee. If it breaks down within one year, we can send the parts free of charge to you.
Our Service:
1.We can design the customized aerial aluminum lift platform as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the aerial aluminum lift platform breaks down to help you repair.
6.Parts of aerial aluminum lift platform can be sent to you by express within 7 days if needed.

Contact Information:
Dennis
Qingdao Sinofirst Machinery Co., Ltd
Danshan Industrial Park, Chengyang, Qingdao, China
