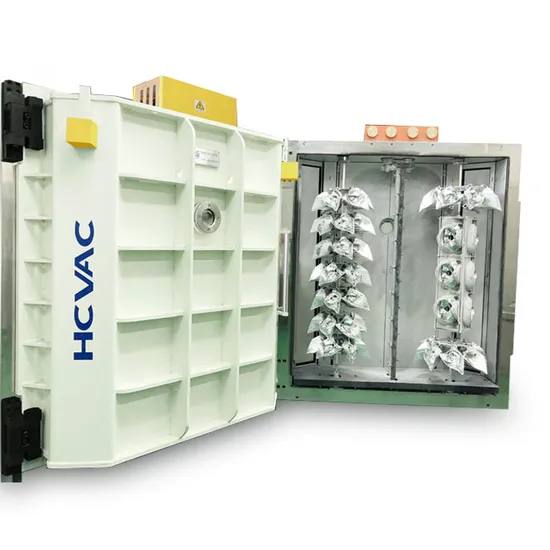

Hcvac Plastic Car Parts Chrome Aluminum Vacuum Coating Machine

Product Description

Plastic Car Parts Chrome aluminum Coating Machine/Automotive Parts Chrome Plating Equipment
1. Vacuum process;
2. Non-pollution
3. Get metallized and colorful film
4. Full automatic
The equipment uses the magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry.
Characteristic: The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating technology. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
Applied industry: Plastic, ceramic, computer, mobile phone, high-end industry, home appliance, aviation, etc. It can coat the composite metal film, alloy film, transparent (translucent) film, nonconductive film, electromagnetism shield film, special film, etc.

Features

Mode Dimension	JTZ-1200	JTZ-1200	JTZ-1400	JTZ-1400
	1200*1400mm	1250*1500mm	1400*1700mm	1400*1800mm
Film type	Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc.
Power source	Resistance evaporation power, DC magnetron power, RF power
Sputtering and electrode structure	Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode.
Vacuum chamber structure	Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side.
Ultimate vacuum	4.0*10 -4 pa
Vacuum system	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 8.5*10 -3 , below minutes
Workpiece motion mode	Public rotation/ Frequency control
Control mode	Manual/Automatic all in one mode, Touch screen + PLC
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

Application

Company Profile
Factory workshop:

Certifications

Packaging & Shipping

Clients


Our Advantages
Why Choose HCVAC system?
Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Contact US
More information about our vacuum coating machine, pls do not hesitate to contact:
Contact person: Mandy Liu

---
