60m3/H Modular Design Concrete Mixing Plant/Concrete Mixer

Product Description

Product Description

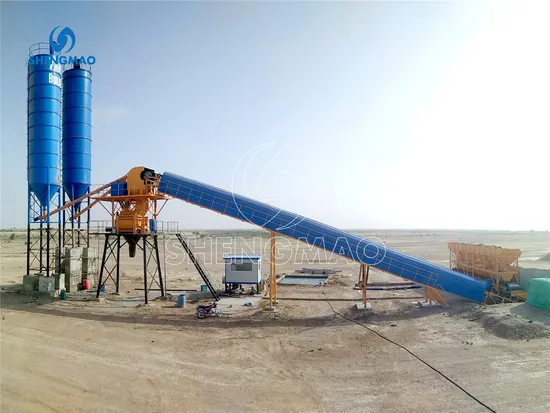

The HZS series concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.

Model	HZS60	HZS90	HZS120	HZS180
Production Capacity (m 3/h)	60	90	120	180
Concrete Mxier	JS1000	JS1500	JS2000	JS3000
Aggregate Feeding Mode	Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Aggregate Batcher	PLD1600	PLD2400	PLD3200	PLD4800
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	4.1	4.1	4.1	4.1
Aggregate Weighing Accuracy(%)	±2	±2	±2	±2
Cement Weighing Accuracy(%)	±1	±1	±1	±1
Water&Additive Weighing Accuracy(%)	±1	±1	±1	±1
Total Weight(T)	28	40	65	88
Total Power (kw)	110	156	200	260
Control System	Computer	Computer	Computer	Computer

Detailed Picture and Specification




Twin Shaft Concrete Mixer
JS series concrete mixer is twin shaft cement mixer, it can mix the plastic and half-dry hard concrete, fluid concrete and lightaggregate concrete.



Water, cement and additive scales
1. Cement weighing accuracy: +/-1%;2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;
5. Air cylinder brand: AIRTAC


Aggregate Batcher
PLD Aggregate Batcher machine is a kind of front desk automatic batching equipment equipped with the mixer. This is concrete
batching machine can finish automatically the batching process of sand, stone, cement etc.



Cement Silo
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Control Room
We have two type: semi-automatic and fully automatic control system.
Packing&Shipping
The machine will be loaded into containers and fixed with steel wire. Small items will be packed with wooden box.

Our Projects
After-sales Service
After-sales Service
1. Provide 7 * 24 hours online after-sales service every week;
2. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos etc.
3. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance;
4. Establish a complete customer profile, regular inspections, regular visits, free maintenance services and technical improvements; 5. Equipped with a spare parts warehouse, you can guarantee the fast supply of all accessories. During the warranty period, the parts required for equipment damage will be borne by the company, the customer does not have to pay any fees

---
