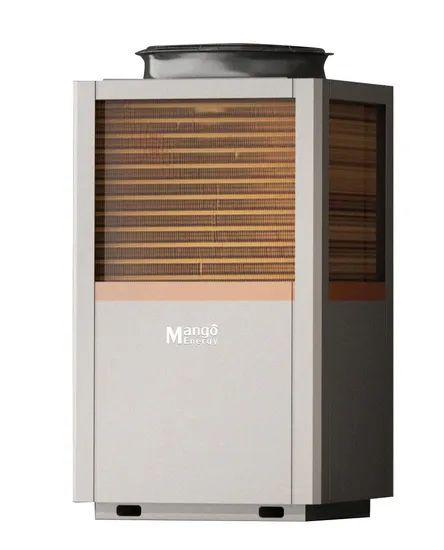

Water Chiller Air to Water Heat Pump Cooling Capacity 220kw

Product Description

Water chiller air to water heat pump cooling capacity 220KW

Model		MG-100KFXLN	MG-120KFXLN	MG-150KFXLN	MG-200KFXLN	MG-250KFXLN	MG-300KFXLN	MG-400KFXLN	MG-500KFXLN	MG-600KFXLN
Heating capicity (A7/W45)	kW	29.5	34.4	42.6	59	75.4	90.2	114.8	147.6	180
Input power	kW	9.07	10.61	12.91	17.84	22.96	27.45	34.68	44.91	54.77
Current	A	17.2	20.1	24.5	33.9	43.6	52.1	65.9	85.3	104
COP	-	3.25	3.25	3.3	3.31	3.29	3.29	3.31	3.29	3.29
Cooling capicity (A35/W7)	kW	26.6	31	38.4	53.1	67.9	81.2	103.3	132.8	162
Input power	kW	9.17	10.73	13.06	18.04	23.21	27.75	35.07	45.42	55.38
Current	A	17.4	20.4	24.8	34.3	44.1	52.7	66.6	86.3	105.2
EER	-	2.9	2.89	2.94	2.95	2.92	2.92	2.95	2.92	2.92
Voltage	V/Hz						380~415/50/3
Rated/Max water temp							45~55°C for heating, 7~12 °C for cooling
Water flow	m3/H	7.7	9	11.2	15.5	19.8	23.6	30.1	38.7	47.3
Water pressure drop	kPa	≤60	≤68	≤70	≤75	≤85	≤86	≤87	≤88	≤90
Refrigeration							R410A
Compressor(Copeland Scroll)		Copeland
Condenser (Tank HE)		155HD-065*2	155HD-075*2	Tube-in Shell heat exchanger			Tube-in Shell heat exchanger
Evaporator		Blue Finned heat exchanger					Blue Finned heat exchanger
4-way valve		DunAn 4-way valve					DunAn 4-way valve
Throttle unit		Danfos Electronic Expansion Valve					Danfo Electronic Expansion Valve
Controller		LCD Wire Controller					LCD Wire Controller
Ambient temperature	°C	-15°C -- 45°C					-15°C -- 45°C
Water pipe size		DN40	DN40	DN40	DN50	DN65	DN80	DN80	DN80	DN80
Noise	dB	≤55			≤60			≤65
Dimension	mm	1100*920*1880			1860*1030*2100			1905*1860*2280
Weight (N./W.)	kg	280/300	320/340	372/395	560/588	582/615	680/720	900/945	1050/1100	1080/1130
Heating conditions: Air temperature (DB/WB): 7°C/6°C, water temperature (inlet/outlet):40°C/45°C.
Cooling conditions: Air temperature (DB/WB): 35°C/24°C, water temperature (inlet/outlet):12°C/7°C.

Installation
FAQ : Marketing of Mango Energy
Q1> What does mango energy company do ?
A1: Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.
Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.
Q3> What is Mango heat pump certification ?
A3 : Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ErP EN14825 test report .
Q4> Where are the Mango energy heat pump export to till now ?
A4 : Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.
Q5> What is the marketing cooperation case with Mango energy ?
A5: Mango energy all find exclusive agent / distributor / wholesale / OEM
Mango energy is manufacturer , so we do not directly face to end user / retail ,
After sign sales contract at this district , we will do not sales to others buyers again,
So agent / distributor care for this district sales & service .
Q6> What Mango energy do for their agent / distributor /OEM ?
A6 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.
Q7> How can get training from Mango energy ?
A7 : If have time , can visit to my factory to training, or invite we engineer team to yours side
Training , or by Video training online.
Q8> What Mango energy offer to their business partner ?
A8: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .
Q9> where is Mango energy heat pump using ?
A9: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating , restaurants, hospitals,schools, bath center, residential central heating and hot water plants, etc.
Welcome visit ours factory . mangoheatpump.en.made-in-china.com
Any more question you can contact us

---
