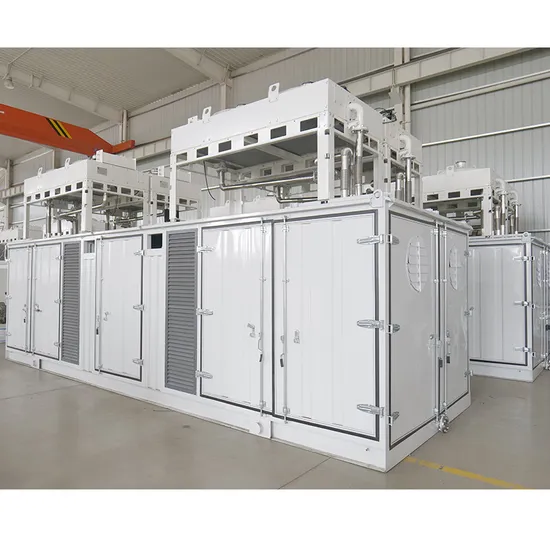

Gas-Powered Electric Generator Set

Product Description

Product Description
Unit power:80KW-300KW engine: fro Austria-Daimler, Germany
Fuel: natural gas, biogas, coal-bed methane, gas, biomass gas, landfill gas, etc.
Supply of cogeneration generator sets and supporting products
Design of customized solutions
Unit installation guidance and commissioning
Equipment operation and maintenance assistance
Product Parameters

Z-SINOTRUK series gas generator set parameters
Unit Model	0C-80Z	QC-100Z	QC-120Z	QC-150Z	QC-200Z	QC-250Z
Unit power(KW/KVA)	80/100	100/125	120/150	150/1187.5	200/250	250/313
Rated voltage(V)	400/230	400/230	400/230	400/230	400/230	400/230
Rated current(A)	144	180	216	270	360	450
rate of recurrence(HZ)	50
Generator insulation grade	IP22	IP22	IP22	IP22	IP22	IP22
Power Factor	0.8	0.8	0.8	0.8	0.8	0.8
Applicable gas	Natural gas, biogas, and associated gas
Engine Model	T10-NG	T10-NG	T10-NG	T10-NG	T12-NG	MT13
Original engine manufacturer	Sinotruk	Sinotruk	Sinotruk	Sinotruk	Sinotruk	Sinotruk-MAN
form	Naturally aspirated, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer	Turbocharged intercooler, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer	Turbocharged intercooler, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer	Turbocharged intercooler, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer	Turbocharged intercooler, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer	Turbocharged intercooler, in-line, water-cooled, 4 valves, electronically controlled high-energy ignition, mixer
Engine power(KW)	100	154	154	180	248	300
Engine speed(rpm)	1500/1800	1500/1800	1500/1800	1500/1800	1500/1800	1500/1800
Number of cylinders	6	6	6	6	6	6
Cylinder bore*stroke(mm)	126/130	126/130	126/130	126/130	126/155	126/166
Displacement(L)	9.7	9.7	9.7	9.7	11.6	13
Speed regulation form	electronic	electronic	electronic	electronic	electronic	electronic
Starting method	Electric start	Electric start	Electric start	Electric start	Electric start	Electric start
Unit size(mm)	2890*970*1790	2890*970*1790	2890*970*1790	2890*970*1790	3000*970*1990	3000*1050*1990
Unit weight(kg)	1590	1610	1570	1630	2600	2800

Application range of gas generator sets

---
