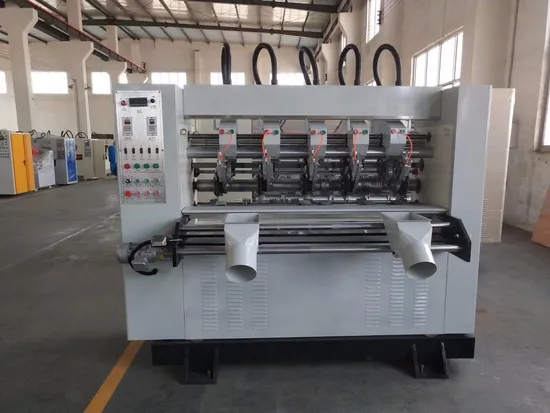

Thin Blade Slitter Scorer with Side-Moving and Lifting

Product Description

Lift-down Thin Blade Slitter Scorer 1) ZQS NC Computer-control Thin Blade Slitter Scorer as an important part of the corrugated cardboard production line is used to do the slitting and creasing.
2) Machine electrically lift-down, to meet different production lines cardboard height.
3) Machine with the electric axial displacement device, efficiently coordinate with cardboard mis-registration.
4) Manually adjust cardboard specifications, simple and practical.
5) Transmission part adopts synchronous belt, high accuracy.
6) Slitting unit adopt high-speed thin blade, the cardboard cutting edge flat, smooth, without crowded bifida and collapsed; pneumatic grinding; grinding automatically or manually while production process, grinding-time and stop-time can be setup, to ensure that the blade edge sharp.
7) Frequency control speed, speed encoder get production speed through velocimetry wheel directly, PLC issued directive, to adjust scoring motor speed, to ensure synchronous running with the production line.
3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min

---
