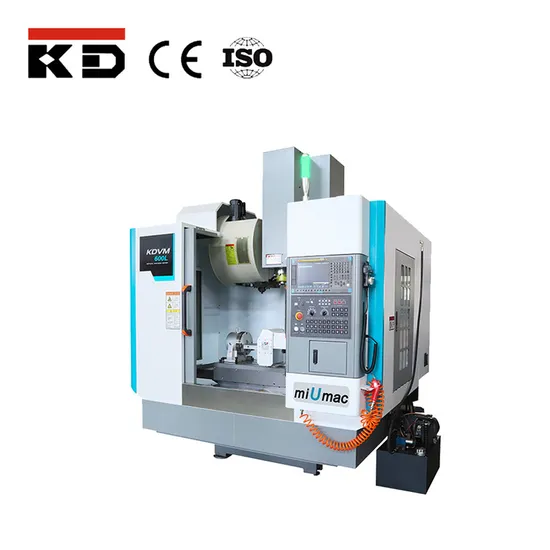

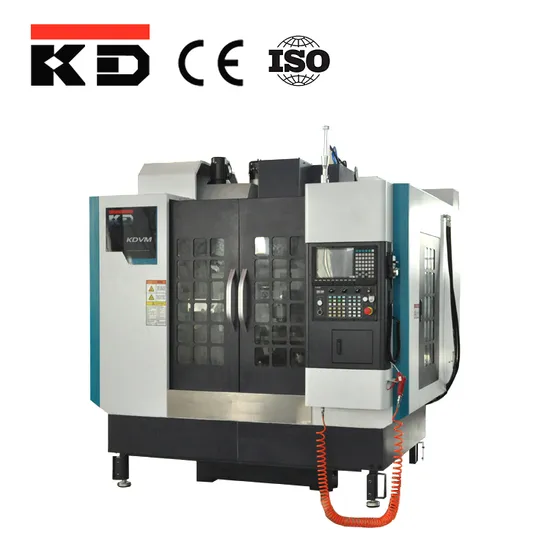

| MODELS | KDVM600L |
| TRAVEL | |
| X axis | 600mm |
| Y axis | 400mm |
| Z axis | 560mm |
| Spindle center to column | 480mm |
| Spindle end to table | 170-730mm |
| TABLE | |
| Table size | 700×420mm |
| T-slot (width×number×space) | 18mm×3×108mm |
| Max. table loading | 500kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 7.5/11 kw |
| Spindle speed | 8000rpm |
| Driving by belt or gears | Belt |
| Kind of gearbox | without gearbox |
| Cutter removal from spindle | Pneumatic |
| FEED | |
| X/Y/Z fast feed | 36/36/36m/min |
| Torque axis motors | 11/ 11/ 11Nm |
| ATC | |
| Type (disc/carousel) | Carousel |
| Tool number | 20 |
| Max. tool size (With adjacent tool) | Ф78mm |
| Max. tool size (Without adjacent tool) | Ф100mm |
| Max. tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning (X/Y/Z) | ≤0.008mm |
| Repeatability (X/Y/Z) | ≤0.004mm |
| OTHERS | |
| Min. Input | 0.001mm |
| Overall dimension | 3380*2100*2400mm |
| Net weight | 3900kg |
