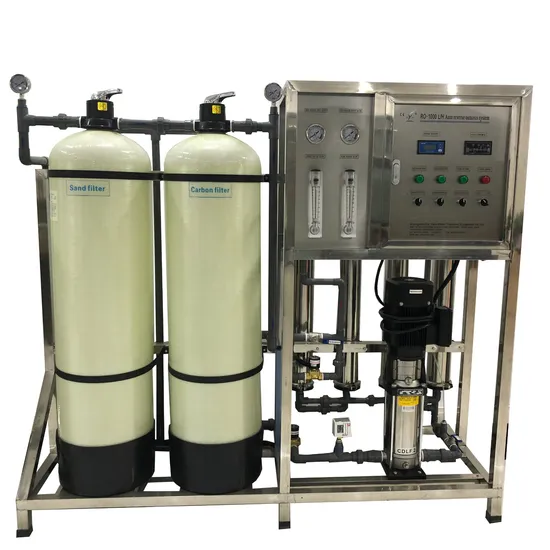

1000L/H Mineral Water Filtration Treatment Machine Reverse Osmosis System RO Drinking Plant Commercial Pure Water Purification Purifier with Price

Product Description

1000L/H Mineral Water Filtration Treatment Machine Reverse Osmosis System RO Drinking Plant Commercial Pure Water Purification Purifier with Price Product DescriptionReverse Osmosis System is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium.Reverse Osmosis System can remove large particle, colloid, organic impurity, heavy metal ion, bacteria from water, and it can also remove more than 97% dissolved salt and solid.Features and advantages of the RO system: 1.The system can produce water continuously, fully automatic. 2.No need chemical to regenerate, easy operation and maintenance.3.Core components of RO system are CNP pump and Vontron RO membranes.4.Automatically switch on when low water level in pure water tank, and switch off when high water level in raw water tank. 5.The system will flush RO membranes automatically about 90s, reducing membranes polluted speed.6.Water shortage protection and low pressure protection switch for pumps.7.Conductivity monitor will detect water quality online continuously and show data.8.Water flow meters, pressure gauges, solenoid valves, regulating control valves, control panel are applied in the whole system. 9. RO controller makes whole RO system operating automatically.10.Easily control and maintenance.
Working process
Raw water tank→ Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV sterilizer (optional)→pure water tank

S/N.	Commodity name	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump	Provide needed pressure for every pretreatment filter	We can provide CNP pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.	The filter tank's material: FRP/ SUS-304/SUS316
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.	The filter tank's material: FRP/ SUS-304/SUS316
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling	The filter tank's material: FRP/ SUS-304/SUS316
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm	Material: FRP/ SUS-304/SUS316
7	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	CNP pump optional
8	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA brand
9	UV Sterilzier	Kill 99% bacterial	For drinking directly
10	Ozone generator	Kill 99%bacterial and keep 2hours sterilization.	For making bottled water

Different water TDS compare and usage
Usage/Source Water	Bottled water, bag Water	City Water	Brackish water	Sea Water
TDS Range	2-10ppm	100-1000ppm	2000-20,000ppm	20,000-40,000ppm
Direct Drinking	Yes	Yes/No	No	No
Cooking, human consumption, washing	Yes	Yes	No	No
Irrigation, industry, animal drinking	Yes	Yes	No	No

Application of pure water:
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
Detailed PhotosMain Parameters of the 1000L/H Reverse Osmosis System

Model	KYRO-1000L/H	Remark
Production capacity	1000L/H
Power supply	110V-480V 50Hz/60Hz	or customize
Power	2.25kw
Raw water pump	LINGXIAO	China famous brand
Quartz sand filter	φ350×1350 fiber glass 1pc	Quartz sand:150kg
Activated carbon filter	φ350×1350 fiber glass 1pc	Activated carbon:50kg
Auto water softener	φ300×1400 fiber glass 1pc	Resin:75L
Security filter	20 "× 5μm pp filter cartridges, 5pcs	Housing material:SUS-304
High pressure pump	CNP pump	China famous brand
Reverse osmosis (RO)membrane	ULP31-4040	or LCLE-4040
Membrane housing	4040 material: SUS-304	4pcs
Sterilizer device	Ultraviolet lamp or ozone machine

Pre-treatment filters: sand filter and carbon filterSand filter and carbon filter
1--The quartz sand filter can remove the suspend solid and low the outlet water turbidity.
2--The activated carbon filter will remove color, odor, residual chlorine from the raw water.
3--Water Softener (optional) , it can remove hardness (calcium, magnesium ions.)
4-- Iron removal filter (optional), it can remove Mn2+, Fe2+, Manganese and Iron ions.
Manual control valveYou need to rotate the handle to finish the fast rinsing and backwashing of filter materials, and then rotate the handle to
filter (normal operation). It is easy to operate PC Control System1--Company name and logo design: customize as your requirements.2--Language:English, Spanish, French and so on.3--Conductivity meter: display the conductivity of output water.4--PH meter: display the PH of output water (optional)5--Thermometer: display the temperature of output water (optional)6--PLC(Programmable Logic Controller): Design the progaram as requirements you need.
7--PLC extension module, analog output module. (optional)
8--Air switch:protect the electric system.
9--AC contactor, thermal relay
10--Indicator light, knob switch
11-- Intermediate relay, Fuse box
12-- Terminals, miscellaneous pieces of electrical appliances
13--When the raw water pump or high pressure pump overheat, relay will stop. So it can protect water pumps from damage.
RO membraneModel: LCLE-4040 Quantity:2 pcs
Brand: USA (Top in the world,with high quality and good reputation)
Model: ULP31-4040 Quantity:2 pcsBrand:VONTRON, made in China
The service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
Company Profile
Certifications
After Sales ServiceThe above machine which we supply it to you, we can give you one year after sales warranty, we can also send our engineer to your factory to install this equipment and train your staff, but the buyer should pay the round air tickets cost and arrange the hotel accommodation as well as the food for seller's engineer. We will send some spare parts to you for free for replacement. Such as activated carbon, sand, pp filter cartridges etc. We will also write emails to remind you to replace the filters and rinse, backwash sand filter and carbon filter.
FAQQ: Is this machine easy to install? Will you arrange engineer to help me install?
A: This machine is very easy for install. The machine you received is assembled. You just need to put filter material into filters, connect electric power and feed water, and then backwash, fast rinse prefilters, at first time use, you have to flush RO membranes by regulating inlet water valve and dense water valve, we put labels with English name on every filters and valves and let you know what they are. It is very easy for you to follow our English instruction and video.
Q: If there are problems of machine, how can I solve?
A: You can contact me by e-mail or mobile or skype, and then tell me problems, send pictures. If it is in one year warranty time, I will send you spare parts for free. If it is more than 1 year, I will help you to find problems, and you can buy spare parts from me or in locally.
Q: What is warranty
A: Our warranty is one year. If you have any problems in one year, just take photoes to show us. Our engineer team will help you to find problems. If any spare parts need to replace, we will send you new one for free.
Q: How can I pay you?
A: After we confirmed order, I will send you sales contract with our company bank information. You can transfer money to our company bank account by T/T. Or you can pay via Western Union or Trade Assurance with credit card, Smartcard or Visa Card. Or do L/C if it is accepted by both of us .

---
