European Type Fastener Connecting Chain Link with Suitable for Lifting Equipment

Product Description

Product Description
1. Product Overview

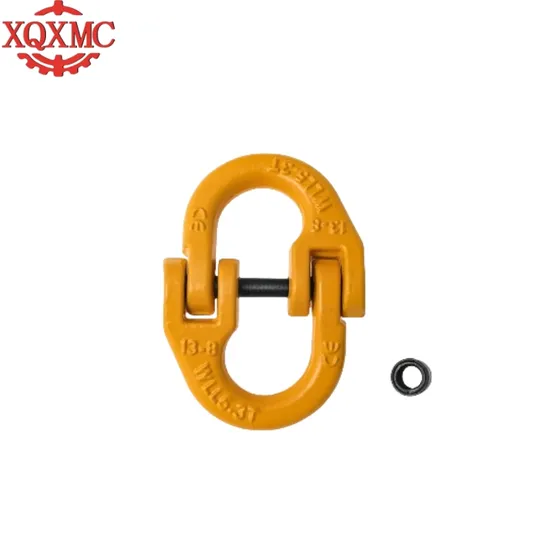

The G80 CONNECTING LINK is a connecting fitting designed for lifting and lifting applications, manufactured from high-strength alloy steel for excellent load-bearing capacity and durability. It meets the G80 level standard, which means that its strength and workload capacity are at a high level.
2. the main features
High-strength alloy steel material: G80 CONNECTING LINK is made of high-strength alloy steel, which has been quenched and tempered to have excellent mechanical properties and fatigue resistance.
High load capacity: This connecting rod is designed to withstand large workloads and is suitable for a wide range of heavy-duty lifting and lifting applications.
Safe and reliable: The G80 CONNECTING LINK has undergone strict quality control and testing to ensure that it has a high level of safety and reliability during use.
Easy to install and maintain: The design of the connecting rod makes it easy to install and maintain, reducing the cost and time of use.3. Technical specifications
The technical specifications of the G80 CONNECTING LINK may vary depending on the manufacturer and specific model, but generally include the following aspects:
Dimensions: The dimensions of the connecting rod may include length, width, height, etc., depending on the application needs and the manufacturer's design.
WORKLOAD LIMIT (WLL): EACH G80 CONNECTING LINK HAS A DEFINED WORKLOAD LIMIT, WHICH REFERS TO THE MAXIMUM LOAD THAT IS ALLOWED TO BE APPLIED ON THAT CONNECTING LINK.
SAFETY FACTOR: THE G80 CONNECTING LINK TYPICALLY HAS A 4X SAFETY FACTOR, WHICH MEANS THAT ITS ULTIMATE LOAD CAPACITY IS 4 TIMES ITS LOAD LIMIT TO ENSURE THAT IT REMAINS SAFE IN EXTREME SITUATIONS.
Surface Treatment: The surface of the connecting rod is usually sprayed or powder-coated to improve its corrosion resistance and aesthetics.
F4.the field of application
G80 CONNECTING LINK is widely used in various lifting and lifting applications, such as electric power, metallurgy, petroleum, machinery, railway, chemical, port, mining, construction and other industries. It can be used to connect rigging accessories such as chains, hooks, lifting rings, shackles, wire ropes, etc., to realize the lifting and transportation of heavy objects. Detailed Photos

Product Parameters

Size	Chain	Dimensions(mm)				W.L.L.	Weight
	Size(mm)	B1	D1	H1	H	(T)	(KG)
6-8	6	15.2	7.5	18.5	45.5	1.1	0.1
7/8-8	7/8	19.2	9.0	24.0	59.5	1.5	0.2
10-8	10	25.0	11.8	28.0	69.8	3.2	0.3
13-8	13	30.0	15.0	36.5	89.0	5.3	0.7
16-8	16	36.0	19.0	41.0	102.0	8.0	1.2
18/20-8	20	42.0	23.0	49.0	119.0	12.5	1.8
22-8	22	49.0	24.5	63.0	152.5	15.0	3.1
26-8	26	58.5	31.5	69.0	162.4	21.2	5.3
32-8	32	67.5	38.5	79.0	194.0	31.5	9.4
Minimum Breaking load=4×W.L.L.(Working load Limited)

Certifications
Packaging & Shipping

Company Profile
Qingdao Xinquanxi Metal Products Co..Ltd. was established in 2001 (formerly known as Qingdao Quanxi Hardware Cable Co., LTD.), located in Jimo District, Qingdao city, the company was mainly engaged in the production and sales of Japanese open-body turnbuckle, die forging shackles, products are mainly sold to the United States, Russia, Japan and other countries.
In September 2019, with the continuous development of the company's business, it merged with Qingdao Ruihongjie Industry and Trade Co., LTD., and changed the company name to Qingdao Xinquanxi Metal Products Co., LTD. At the same time, the business range is gradually expanding, the main production and operation of hardware rigging, wire rope connecting parts, hardware machinery, Marine and automobile connecting parts, all kinds of forging, sheet metal, stamping, casting parts and other products. After more than 20 years of development, we have established a complete system, with strong technical capacity, mature production methods, advanced production equipment and testing methods.
We always adhere to the principle of quality first, safe production, timely delivery, customer satisfaction after sale service, and constantly research and learn product expertise, with the best quality products to serve customers.
FAQ
1.Are you a factory or a trading company?

We have our own foundry and forging factory. The forging plant has 4 production lines and a history of more than 20 years;Foundry has a history of more than 30 years.
2.How do you control your quality?
1: Control during r&d at the beginning of production
2:Production process control
3:Dimensional control
4:Tensile tests
5:Quality inspection before delivery
3.Can we have our product markings on it?
Yes, we can add product markings according to your requirements.
4.How about packing?
Woven bag, carton, plywood pallet or by customer requirements.Customer reviews

---
