Center Opening AC Pm Door Operator for Elevator

Product Description

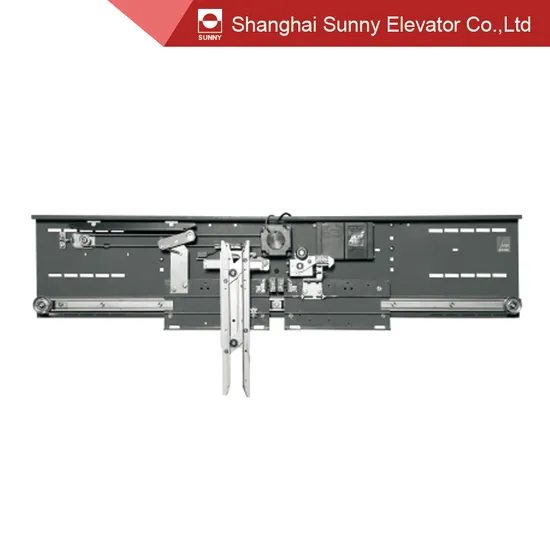

Center opening AC PM door operator(Straight beam mounting)
Using permanent magnet motor, rotating torque, energy saving, energy-efficient motors.
Synchronous door knife hall door switch door sedan always in sync.
Door knife retractable action in the various couplings are inlaid bea-ring, flexible and comfortable operation of the door blade, rigid sliding friction and no wear no maintenance free.
Used motor belt drive straight drag mode.
Voltage 200V- 250V.50/60Hz

JJ	600	700	800	900	1000	1100	1200	1300	1400	1500
A1	1260	1460	1660	1860	2060	2260	2460	2660	2860	3060
B1	175	225	275	325	375	425	475	525	575	625
C1	325	375	425	475	525	575	625	675	725	775
E1	250		400			550

AS	According to the straight beam inside the car frame size determination
EE	According to the depth of the car 1/2 determine
Bb	According to user requirements
