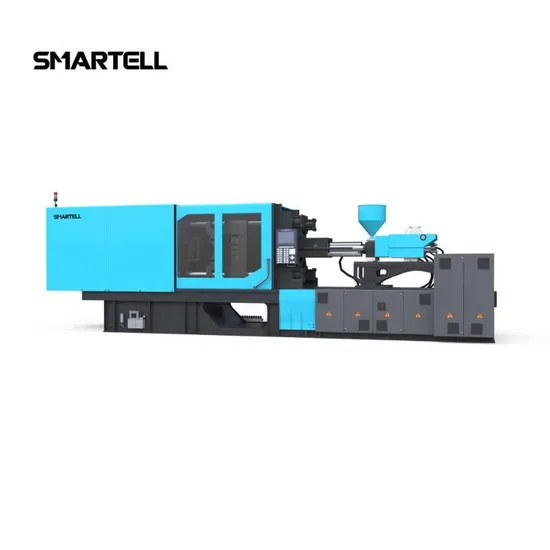

Smartell Syringe Production Line Auto Injection Machine

Product Description

Injection Molding Machine in China
Consist of plasticizing system, injection system, the clamping system and transmission system of plastic injection molding equipment. Our company use die casting technologies applied to injection molding machines for many years.
In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
Advantage:
1. Clamping Unit
Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Unit
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;
Using hydraulic motor to carry out variable speed.
3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality
hydraulic components are applied.
4. Electric Unit
Special controller for plastic injection molding machine; All the main components are imported from famous company, for example: TE(France), Gefran(Italy),etc.

ITEM/ MODEL	UNIT	SMT-1016 168T			SMT-1020 208T				SMT-1025 258T			SMT-1028 288T
Screw Diameter	mm	40	45	48	45	50	55	55		60	65	60	65	67
Screw L/D Ratio	L/D	22.5	20.3	19	23.1	20.6	18.7	21.5		19.7	18.2	21.7	20	19.4
Clamping Force	KN	1680			2080				2580			2880
Opening Stroke	mm	420			475				545			610
Hydraulic Ejection	KN	45			62				62			70
Ejector Stroke	mm	140			165				165			165
Motor Power	KW	15			18.5				22			30
Heater	KW	10			16				18			18
Machine Dimension	m	5.2x1.3x2.1			5.7x1.4x2.3				6.3x1.5x2.3			6.5x1.6x2.2
Machine Weight	t	4.8			6.6				7.8			8.5

---
