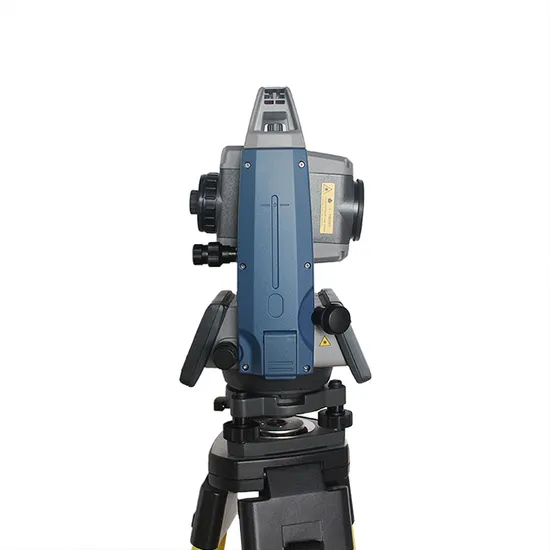

Sokia IM52 Perfect for entry-level site layout and surveying, the Sokia iM-50 Series Reflector-less Total Station is a smart
measuring device that offers reliable and accurate results with a friendly price. The Sokia iM-50 features a reflector less range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.
This Sokia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.
With an IP66 rating, the Sokia iM-50 is total dust proof and water resistant. It features a graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.
MODEL
| Sokia iM-series
|
Telescope
|
Magnification /Resolving power
| 30x/2.5
|
Length
| 171mm(6.7in.)
|
Objective aperture
| 45 mm(1.8 in. )(48 mm(1.9 in. )for EDM)
|
Field of view
| 1.30 (26m/1,000m)
|
Minimum focus
| 1.3m(4.3ft.)
|
Reticle illumination
| 5 brightness levels
|
Angle Measurement
|
Display Resolution
| 0.5"/1
| 1"/5
|
Accuracy(IS0 17123-3: 2001)
| 1"
| 2"
| 3"
| 5"
|
LACS(Independent Angle Calibration System)
| Provided
|
Dual-axis compensator
| Dual-axis liquid tilt sensor, working range: +6
|
Collimation compensation
| (111 mgon)/Collimation compensation available
|
Distance Measurement
|
Laser output
| Reflectorless mode: Class 3R/Prism/sheet mode: Class 1
|
Measuring range
| Reflectorless
| 0.3 to 800m (1.0to2, 624ft.)
|
RS90N-K :1.3 to 500m (4.3to1,640ft)
|
RS50N-K: 1.3 to 300 m (4.3to980ft.
|
(under average conditions)
| RS10N-K: 1.3 to 100 m (4.3to320ft.)
|
CP1:1.3 to 2,500 m (8,200ft) OR1PA: 13 to 500m(1640ft)
|
| | One AP prism
| 1.3 to 5,000 m(4.3 to 16, 400 ft)/Under good
|
| | | conditions":6,000 m(19,685 ft.)
|
Display Resolution
| | Fine/Rapid: 0.001 m/ 0.01 ft /1/8 in.
|
| | | Tracking: 0.01 m/0.1 ft /1/2 in
|
Accuracy2(1SO17123-4:2001)
| Reflectorless
| (2+2 ppm D) mm
|
| | AP/CP prism
| (1.5+2 ppm x D)1.5 mm
|
Measuring time
| Fine: 0.9 s(Initial 1.5 s), Rapid: 0.6 s(Initial 1. 3 s)
|
Tracking: 0.4 s(Initial 1. 3 s)
|
Interface and Data management
|
Display/ Keyboard
| Graphic LCD, 192 x 80 dots, backlight
|
contrast adjustment/ Alphanumeric keyboard
|
28 keys with backlight
|
Control panel location
| On both faces (second display is optional)
|
Trigger key
| On right instrument support
|
Data storage
| Internal memory
| Approx. 50,000 points
|
| | Plug-in memory device
| USB flash memory(max 32GB)
|
Interface
| Serial RS-232C, USB2.0(Type A, for USB flash memory)
|
Bluetooth"modem(optional)
| Bluetooth"Class 1.5, Ver. 2.1+BR. EDR. LE BT 4. 1
|
Operating range: up to 10 m (33 ft)
|
General
|
Laser-pointer
| Coaxial red laser using EDM beam
|
Guide light
| |
Green LED (524 nm)and Red LED (626 nm)
|
1.3to150m(4.3to490ft.)
|
Levels
| Grap
| 6 Inner Circle
|
| | Circular level (on tribrach)
| 10'/2mm
|
Plate Level
| Regional Dependent
|
Optical plummet(optional for NA, LA and EU
| Magnification: 3x,Minimum focus: 0.3 m(11.8 in. ) from tribrach bottom
|
Laser plummet(optional for Oceana and Russia
| Red laser diode(635 nm+ 10 nm)Beam accuracy: s1.0 mm at 1.3 m, Class 2 laser product
|
Dust/water Rating
| IP66 (IEC60529: 2001)
|
Operating Temperature
| -20°C to 60°C
|
Size with handle
| Control panel on both faces: 183 x 181 x348 mm
|
Control panel single face: 183x 174 x348 mm
|
Weight with battery and tribrach
| Approx 5.3 kg
|
