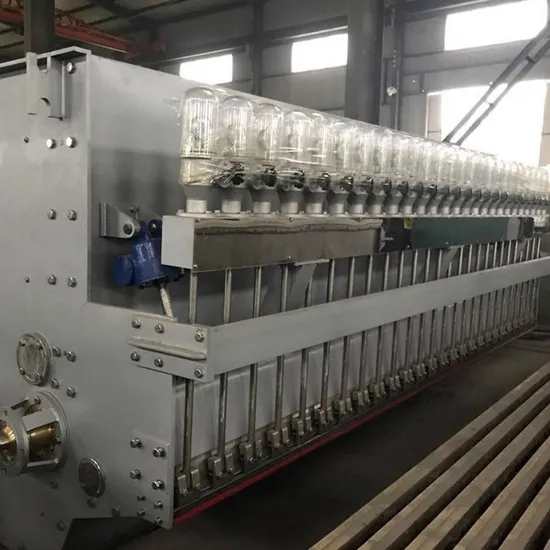

Headbox Hydraulic Headbox for Paper Pulp Cleaning Equipment Price

Product Description

Raw Material Ratio	waste paper pulp,etc
Finished Paper Grammage Range	fluting raw paper :90-260 g/m2
Tirm Width	3500mm(rolled paper width 3550mm
Nozzle Width	3750mm
Working Speed:400m/min, Design Speed	450m/min
Maximum flow of the cone inlet	m3/h
Paper width shrinking percentage	<=4
Arrangement type	right side machine (looking from the reel to the headbox
Concentration onto wire	fluting paper:0.8%~1.3%

Stainless steel or copper is used for all parts that come into contact with the slurry and the
rotating parts that need to be adjusted.
1. Feeding pipe: all stainless steel (304) (including matching flange)
2. stepped orifice plate: use a piece of plexiglass;
3. Side wall: stainless steel plate (304);
4. Upper part: stainless steel plate (304);
5. Bottom beam: with stainless steel (316L) + Q235 combination;
6. Upper lip frame: stainless steel (304);
7. The upper lip and the vertical small lip are made of stainless steel (316L);
8. Homogenizing roller: stainless seamless steel pipe (1Gr18Ni9Ti);
9. Lower lip (316L);
10. spinner: using cast aluminum;
11. Support: Q235 (outsourcing stainless steel)
Weifang Greatland Machinery Co., Ltd. belongs to Greatland Group., who is a comprehensive one-stop Professional Solution Provider, which is specialized in Pulp & Paper Industry. Our products mainly include Pulp Equipment& related Spare Parts (e.g. pulping, screening, refining and thickening, etc.), Paper Machinery Upgrade &Reform Service and different kinds of Paper Machines Parts (e.g. press roll, felt guider, suction roll, headbox, etc.). We sincerely hope to establish more cooperation based on our trustworthy quality and inheart service. Greatlanders not only devote to creating more and more mutual benefits, but also do the best to improve spiritual pursuit for all our partners. Sincerely hope to we are getting better and better through our joint efforts.Greatland devotes to leading worldwide paper-making industry development and create world-renowned Greatland Brand.
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end.
Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international
airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker
training service, free technical support whole life.

---
