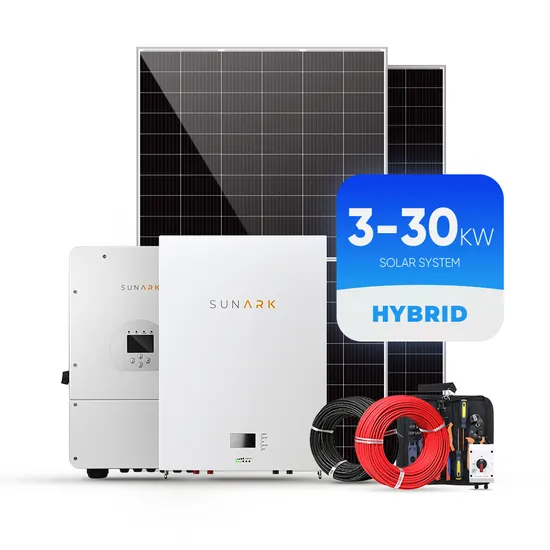

Solar Complete Set Solar Panel Systems 3kw 5kVA 15kw 20 Kw 30kw Solar Hybrid PV System

Product Description

Product Description
Warranty
How it works
What's Included

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set
Model	SE-15KW-HY	SE-20KW-HY	SE-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG04LP3-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Half Cut Mono 550W Solar PanelPeak Power Watts: 550WMaximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A Dimensions:2279x1134x35mm Weight:26.9 kgHybrid Solar Inverter 48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.Max. charging/discharging current of 240AMax.10pcs parallelDC couple and AC couple to retrofit existing solar systemMonitoring SystemOpen station supports one-click installation and registrationProblem support one-click dispatch and navigationSafe operation, traceable logs, etcSupport full lifecycle data storage to ensure data security and reliabilityWall Mounted LiFePo4 Battery15-20 years design life. Up to 6000 + cycle IlfeWall mount or ground stack brick, simply connecting to inverterBattery module is scalable for any larger storage system.Battery modular built in high quality BMS. Protect battery cells all the way.Lithium iron phosphate battery cell, stay safe with battery storage at home.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalDC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 YearsDC & AC Disconnect SwitchIP Rating: IP66Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool Packaging & Shipping
Application
Company Profile
Global Project Case
FAQQ1: Can the product be shipped to my area?A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.Q2: What about the lead time?A2: 10 Working days for<200kW requirements, we need to negotiate if your needs ≥200kW.Q3: How can I make payment?A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipmentQ4: what's the warranty?A4:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement

---
