2t/H Wood Pellet Cooler Machine for Sale

Product Description

SKLN series 2T/H Wood Pellet Cooler Machine For Sale
1. Best Quality Counter-flow Pellet Cooler Main product character :
(1) This machine adopts the counter flow cooling principle to cool down pellets with high temperature and high moisture content. This cooling method can avoid the sudden cooling because of the direct contact between the cold air and materials . which will prevent the surface cracking of the pellets.
(2) The latest design of octagonal cooling chamber had no dead angle.
(3) Feeding via airlock had large wind area and remarkable cooling effect .
(4) The reciprocating slide valve discharging mechanism is stable and reliable in working and guarantee less residue.
(5) Low energy consumption and easy operation .
(6) The temperature of cooled products is not 3ºC-5ºC higher than room temperature, which is suitable for cooling granule materials .
(7) We also provide cooler with panel turnover discharging system for your choice. The hydraulic driven discharging mechanism is usually used for cooling the extruded or expanded materials .
2. 2T/H Wood Pellet Cooler Machine For Sale technical parameter :

Model	SKLN1.5	SKLN2.5		SKLN4	SKLN5	SKLN6	SKLN8	SKLN10
Cooling volume (m3)	1.5	2.5		4	5	6	8	10
Capacity (t/h)	3	5		10	12	15	20	25
Cooling time (min)	No less 6~10
After cooling temperature material	Less than 3~5ºC higher of the room temperature
Cyclone Diameter(mm)	600		600	1000	1000	1200	1600	1600
Power ( KW )	0.75		1.1	1.5	1.5	1.5	2.2	2.2
Airlock (KW)	1.1		1.1	1.1	1.1	1.1	1.1	1.1

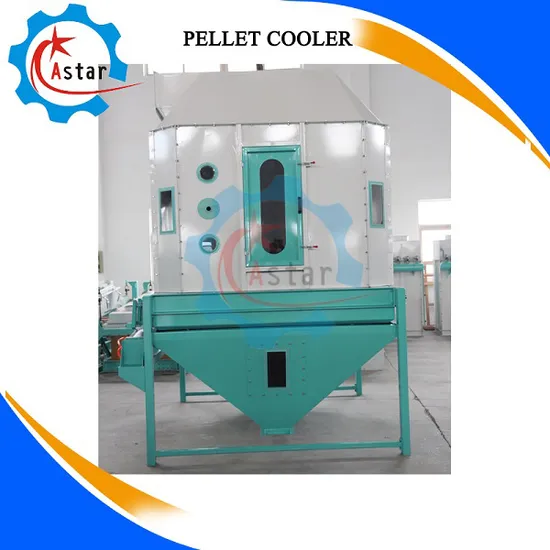

SKLN series 2T/H Wood Pellet Cooler Machine For Sale Photos:
Any more information you need 2T/H Wood Pellet Cooler Machine For Sale, please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906

---
