Product Details
Product Description
Product Description

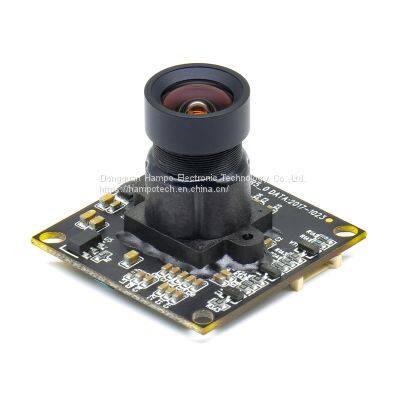

USB Camera Module/MI5100 Camera Module
Model
| 003-0093
|
Max Resolution
| 2592*1944
|
Sensor Size
| 1/2.5"
|
Pixel Size
| 2.2μm*2.2μm
|
Wide Dynamic range
| 70 DB
|
Output Format
| MJPG/YUY2
|
Focus
| Fixed focus
|
Frame rate
| 30fps/15fps
|
Voltage
| DC 5V
|
Working current
| MAX 500mA
|
Interface
| USB 2.0
|
Storage Temperature
| -20°C to +70°C
|
System compatibility
| 1) Windows XP（SP2,SP3）/Vista/7/8/10 2) Linux or OS with UVC driver
|
Audio
| YES
|
PCBA Size
| 32*32mm
|
FOV
| D=80°
|
TTL
| 22.1mm
|
Lens construction
| 2G2P
|
Thread size
| M12*P0.5
|
003-0093 is a 5MP USB Camera on the based of a large size of sensor MI5100, the max resolution is 2592*1944P.
It is clear enough to detect whether one person's hair follicles are being blocked, then given related solution to deal with the skin problem.
Beside this, it could also detect and judge someone's skin is over oil or dry, healthy or not and so on. It is an indispensable skin detect equipment for cosmetologists.
Key Features
Super Aptina MI5100 Image Sensor5 megapixel USB camera module adopt high quality Aptina CMOS MI5100 sensor, deliver sharp images effectively. High definition with low color reproduction deviation. Frame rate 2592x1944 at 15fps, 1920x1080 at 30fps.
Big Sensor Size:Adopt a large sensor on 1/2.5" CMOS MI5100, bigger size of sensor, make a better image with less light. A supper clear video image is perfect for beauty, medical equipment.
Lower Color Reproduction DeviationCamera with High definition and lower Color reproduction deviation produce sharp image and accurate information, super small and thin profile for embedded applications.
