Resilient Buried Seat Price Directional Gate Valve

US$10.00 10 Pieces (MOQ)

Basic Info.

Model NO.
Z45X
Type
Direct-acting
Material
Cast Iron
Connection Form
Flange
Pressure
Low Pressure
Actuator
Electric
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
GB
Application
Industrial Usage, Water Industrial Usage, Household Usage
Color
Blue or Customized
Pn
10 16 150lb 300lb
Dn
50-3200mm
Design
Cast / Forged
Operator
Manual / Electric Acuated / Pneumatic
Sealing
EPDM / NBR / PTFE / Viton / Stainless / Stelliete
Certification
Wars / Ce / ISO9001 / ISO14001 / GOST / SGS
Spray
250 Micron
Transport Package
Wooden Case
Specification
Ductile iron material
Trademark
BH
Origin
China
HS Code
8481804090
Production Capacity
5000PCS/Year

Product Description

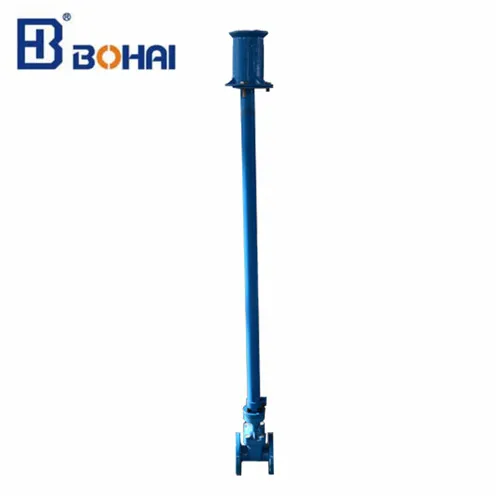

Resilient Buried Seat Price directional Gate Valve
Performance parameters:
DN 40-----1200 mm
PN 1.0----1.6 MPa
Suitable temperatur 100 °C max
Media Water, gas, oil.
Operation Electric

1.Such a design as the dustproof ring plus three layers of O-sealring makes the sealing reliable and on-line replaceable.
2.The design with an aluminum bronze bearing inlaid in the gate valve leaves a good self-lubrication and a high strength.The said bearing can be replaced without need to replace the integral gate when worn out after a long time use.
3.The gate is wrapped with rubber,anti-corrosion and good at tightness.
4.Advanced surface treatment,coated with harmless epoxy resin static powder,anti-corrosion,non-pollution,can be used in a drinking pipeline.
5.The body is gate-slot free designed,the channel is smooth without causing impurities to be piled up,more suitable for sewage working condition
6.Reliable integral sealing,zero-leak for high pressure sealing under 1.5 times of Pn And for low pressure sealing under 0.02PMA
