Vibration Crimped Wire Mesh Screen Machine

Product Description

Vibration Crimped Wire Mesh Screen Machine
Product Description

	TJ-C01	TJ-C02	TJ-C03
Wire diameter	1-2.5mm	2.5-6mm	7-14mm
Mesh size	2-30mm	3-100mm	20-200mm
Width	1600mm	2500mm	2500mm
Motor	3.0KW	5.5KW	7.5KW
Speed	30-40row/min	20-40row/min	25row/min
Outside size	4000*2300*1800mm	3500*2100*1500mm	2900*2100*1700mm
Weight	3000kgs	3200kgs	3500kgs
Material	low carbon wire ,high carbon wire,stainless steel wire , cooper wire, galvanized wire and so on.

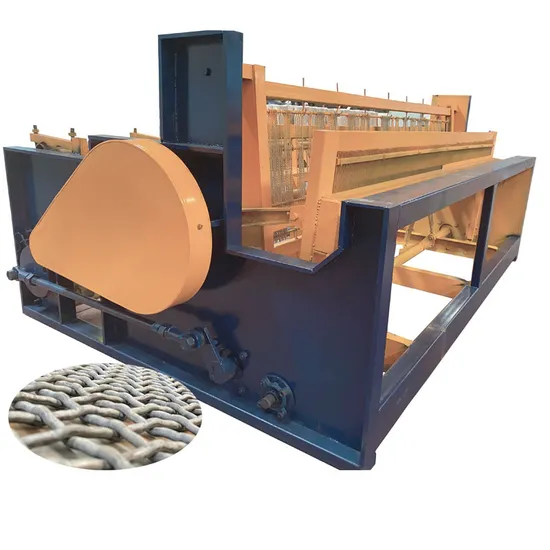

TJ-C01 automatic crimped wire mesh machine
TJ-C01 crimped wire mesh machine breaks through the traditional model of keyboard wire weaving, adopts double-kun weft shooting, improves the weft wire weaving times and mechanical stability, and is more convenient to operate. The electromagnetic clutch induction automatic brake effectively improves 1.5 times. The production efficiency makes the mechanical failure rate close to zero, and it can realize fully automatic weaving of wire diameters below 2.5mm.
TJ-C02 Semi automatic crimped wire mesh machine
The semi-automatic crimped wire mesh machine is first rolled and then knitted, hand-inserted into the weft wire, and automatically feeds the diameter, which is designed for thick wire. It is suitable for the weaving of metal wires above 2mm and below 7mm, with simple operation and no weft breakage. Its new type has the characteristics of high production efficiency and stable mechanical properties. TJ-C03 Hydraulic crimped wire mesh machine
TJ-C03 hydraulic crimped wire mesh machine is also a manual weft insertion machine, crimping wire machine is counting the length and cutting automatic. The hydraulic crimped wire mesh machine is suitable for the weaving of large wire diameter crimped wire mesh, the wire diameter range: 6mm--14mm. It is widely used in the screening of mines, petrochemicals, coal and ores.
Finish products:
According to different uses, the crimped wire mesh can also be used as mine screen crimped wire mesh, feeding crimped wire mesh, barbecue crimped wire mesh, grain silo crimped wire mesh, decorative crimped wire mesh. According to the shape, it can also be called pimple crimped wire mesh, wrapped crimped wire mesh, crimped wire mesh. The crimped wire mesh is a square mesh made by embossing machine through embossing and then weaving metal wires of different materials and different specifications through a new type of wire weaving machine.
Loading pictures:

Company information:
1.Anping Shenghua Metal Wire Mesh Machine Factory(Anping County Taojin Wire Mesh Machine Co.,Ltd.) is belong be Shenghua Group, we have engaged in wire mesh machine manufacture over 30 years, our company from only 1500m2 small factory to now 40000 m2.
2.We are produce and sell kinds of wire mesh machine, like chain link fence machine, welding wire mesh machine, expanded plate mesh machine, weaving machine, razor barbed wire machine, perforated mesh machine and so on
Terms: Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case

---
