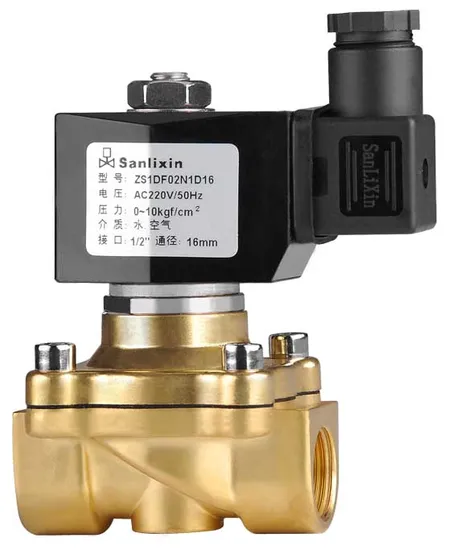

2 Way Brass Water & Air Direct Acting Solenoid Valve

US$22.00 1,000 Pieces (MOQ)

Basic Info.

Model NO.

ZS SERIES

Actuator

Electric

Connection Form

Thread & Flange

Type

Direct Acting

Material

Stainless Steel

Pressure

Ordinary Temperature

Valve Structure

Direct Action Diaphragm Structure

Power Supply

AC & DC Solenoid Valve

Standard

DIN

Application

Industrial Usage, Water Industrial Usage, Household Usage

Zs Series

3/8′′~2′′ & Flange Type

Transport Package

Export Carton

Specification

TUV & ISO & CE

Trademark

SANLIXIN

Origin

Yuyao, Zhejiang, China

HS Code

8481804090

Production Capacity

2000PCS/Month

Product Description

Solenoid Valve
ZS Brass Series 2/2-way Zero Press Differential Solenoid Valve. Normally Closed
Body Material: Forged Brass\Cast Brass
Orifice: 16mm~50mm
Pipe Size: 3/8"~2"
Fluid Media: Water\Hot Water\Air\Gas\Oil etc.
Solenoid Valve
ZS Brass Series 2/2-way Zero Press Differential Solenoid Valve. Normally Closed
Body Material: Forged Brass\Cast Brass
Orifice: 16mm~50mm
Pipe Size: 3/8"~2"
Fluid Media: Water\Hot Water\Air\Gas\Oil etc.

New	Pipe	Orifice	Pressure	Seals	Body
Model code	Size	(mm)	(bar)	Seals	Material
ZS1DF02N1C16	3/8	16	0~10	NBR	forged brass
ZS1DF02N1D16	1/2	16	0~10	NBR	forged brass
ZS1DF02N1E20	3/4	20	0~10	NBR	forged brass
ZS1DF02N1G25	1	25	0~10	NBR	forged brass
ZS1DF02N2H32	1 1/4	32	0~10	NBR	cast brass
ZS1DF02N1H35	1 1/4	32	0~10	NBR	forged brass
ZS1DF02N2J40	1 1/2	40	0~10	NBR	cast brass
ZS1DF02N1J40	1 1/2	40	0~10	NBR	forged brass
ZS1DF02N2K50	2	50	0~10	NBR	cast brass
ZS1DF02N1K50	2	50	0~10	NBR	forged brass
