OEM/ODM Poe Switch 4 8 16 24 Ports 10/100m Gigabit Unmanaged 48V Ethernet Fiber Switch Poe IEEE802.3af/at Suitable CCTV NVR

Product Description

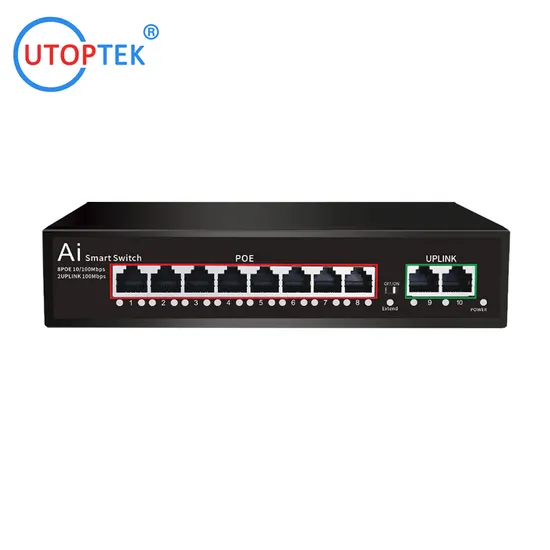

48V ethernet switch 8-port 10/100M PoE+2Port Uplink Ethernet Switch for Hikvision/Dahua IP Camera
Product Description
This 10ports POE Switch provide network layout, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers 8 10/100M PoE ports which supply 15.4 watts of power per port for devices such as high power wireless access points (AP),VoIP telephony systems and IP-based surveillance cameras network cameras.
This standalone switch features an internal power supply. Auto sensing technology delivers 15.4 watts to 802.3at PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 2 Gbps. LED indicators display device status for efficient troubleshooting. Features
8x 10/100 Mbps automatic adjustment RJ45 ports 2*10/100Mbps Uplink port Built-in power supply, Whole power budget: 120W Desktop design, easy to install and use Supply power to Cat5,5e,cat6 and up Ethernet wireless access point (AP) and network surveillance cameras POE port comply with IEEE802.3af/at standard powersupply Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV) Automatic adjustment, plug and play, no need software and protocol conversion Product Parameters

Product	Active 10/100Mbps 8POE+2UTP PoE Switch
Model	UT-PS0802F
Feature	Modular Design, Stardard Size
POE Port	1 to 8 support IEEE802.3AF/AT Standard
Output Power	15.4W/30W IEEE802.3af/at
Power Pin	Both 1/2+,3/6- and 4/5+7/8-
Whole Power	≤120W (Built-in power 52V 2.3A)
POE Protocol	IEEE 802.3af/IEEE 802.3at
POE Type	End-span
Network Standard	IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Network Medium	10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability	2Gbps
Forwarding Mode	Store and forward
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx:14800pps/port
MAC Address	MAC address table 1K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	LINK/ACT.1000Mbps; POE Status Indicator; Power indicator;Extender
Working Environment	Working temperature:-10°~+70°C

Detailed Photos
Packaging & Shipping
Company Profile
Certifications
Ordering Informations

10/100Mbps POE Switch 250M
Model	Description
UT-PS0402F	4*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤60W/52V/1.05A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0402F(B)	4*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0602F	6*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤75W/52V/1.25A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0802F	8*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS1002F	10*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:2.4G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS1402F	14*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤200W/52V/3.8A ;Bandwidth:2.4G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS08F02G	8*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:5.6G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS08F12G	8*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:5.6G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F02G	16*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤250W/52V/4.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F12G	16*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤250W/52V/4.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F12G(1U)	1U RACK 16*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤250W/52V/5.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS24F02G	24*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤320W/52V/6.15A ;Bandwidth:8.8G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS24F22G(1U)	1U RACK 24*10/100Mbps POE RJ45 +2*1000M Uplink UTP+2*GE SFP, Power:Per≤30W &Whole≤350W/52V/6.7A ;Bandwidth:8.8G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
Full Gigabit POE Switch 100M
UT-PS0401G	4*10/100/1000Mbps POE RJ45 +1*1000M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0402G	4*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0411G	4*10/100/1000Mbps POE RJ45 +1*1000M Uplink UTP+1* GE SFP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0802G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0820G	8*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0812G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0822G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP+2*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1602G	16*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤250W/52V/4.8A, Bandwidth:32G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1620G	16*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤250W/52V/4.8A, Bandwidth:32G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1644G	1U RACK 16*10/100/1000Mbps POE RJ45 +4*1000M Uplink UTP+4*GE SFP, Power:Per≤30W &Whole≤250W/52V/5.8A, Bandwidth:40G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2402G	24*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤320W/52V/6.15A, Bandwidth:48G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2420G	24*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤320W/52V/6.15A, Bandwidth:48G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2444G	1U RACK 24*10/100/1000Mbps POE RJ45 +4*1000M Uplink UTP+4*GE SFP, Power:Per≤30W &Whole≤350W/52V/6.7A, Bandwidth:56G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF

Customer's Feedbacks

FAQ
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
