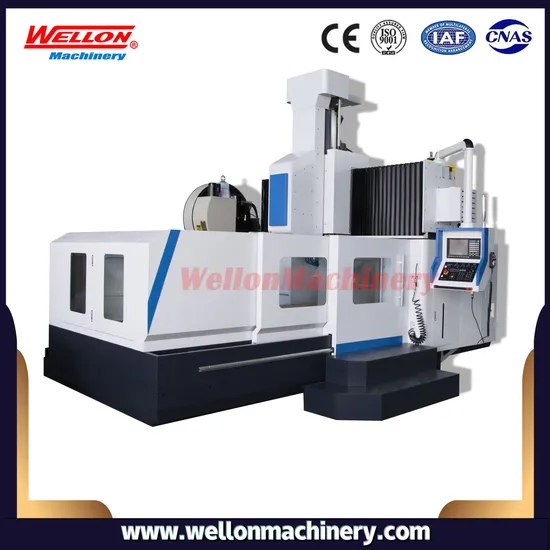

CNC Gantry Type Milling/CNC Machine Tools/Double Column CNC Machining Center XH2016 XH2518

Product Description

Detailed Photos
Product Parameters

Technical parameter:

Item	Unit	XH2016	XH2518
X axis travel	mm	2000	2500
Y axis travel	mm	1650	2000
Z axis travel	mm	800	1000
Spindle nose to worktable	mm	250-1050	150-1150
Distance between two column	mm	1660	1800
Leadscrew diameter	mm	63/50/50	63/50/50
Linear guideway width	mm	55/55/Rectangle	55/55/Rectangle
Worktable Length	mm	2000	2500
Worktable width	mm	1300	1600
T slot qty-width*distance	mm	7-22*170	9-22*180
Max loading capacity	Ton	4	7
Spindle speed	rpm	10000/belt	10000/belt
Spindle motor power	kw	15	15
Fast moving speed	m/min	20/20/10	20/20/10
Cutting speed	mm/min	1-8000	1-8000
Spindle taper		BT50	BT50
Feed motor power	kw	6/5/5	6/5/5
X/Y/Z axsis motor torque	Nm	38/30/30	38/30/30
Tool Magazine Capacity	pcs	Disc/24	Disc/24
Positioning accuracy	mm	0.016/0.015/0.015	0.018/0.015/0.015
Repeat accuracy	mm	0.012/0.010/0.010	0.012/0.010/0.010
Length	mm	4000	6200
Width	mm	2950	3000
Height	mm	3200	3800
Weight	kg	16800	200000

Standard accessories:

Mitsubishi M80A controller

Spindle speed 10000rpm belt type

24 tools disc type

Screw type chip conveyor & chip bucket *2

Chain type chip conveyor & chip bucket *1

Nitrogen balance cylinder

Air conditioner in cabinet

Air gun+Water gun

Automatic lubricating system

2-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from Taiwan Hiwin

Levelling pad,nut and bolts

Tools and tool box

Optional accessories:

Spindle oil cooler

CTS 20bar

CTS 30bar

Reneshaw tool probe TS27R

Reneshaw workpiece measurement device OMP60

Gear head

Manual angle head

Auto angle head

Chain type ATC 32 tools

Chain type ATC 40 tools

HEIDENHAIN scales/1m

4TH Axis rotary table 255mm+tail stock+hydraulic station

5TH Axis rotary table 255mm+hydraulic station

Company information

Packaging & Shipping

FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
