10000bph 500ml Carbonated /Energy/ Soft Drink Production Line

Product Description

Complete Production Line For Bottled Carbonated / Non Carbonated Juice / Beverage
*We supply complete solution for the carbonated drinks bottling plant ,including Water treatment system / Carbonated beverage mixing system / Washing filling capping machine / Code sprayer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system

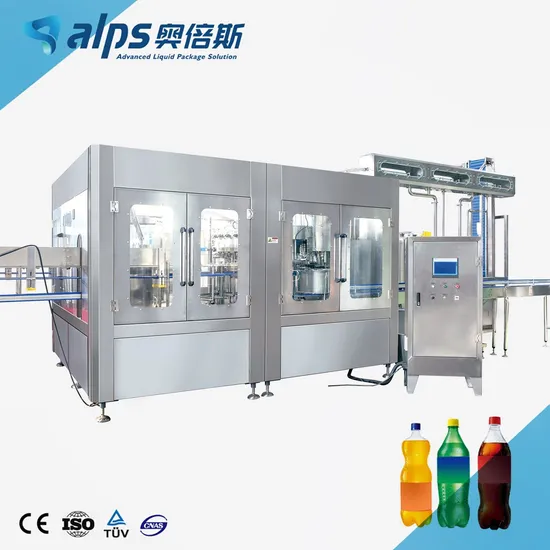

Technical parameter: Carbonated Drink Bottling Machine
Model	DCGF14-12-5	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Capacity(for 500ml)	2000-3000	3000-5000	5000-7000	8000-10000	12000-15000
Suitable bottle shapes	PET circular
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Filling type	Isobaric filling
Filling pressure	<0.4 Mpa
Rinsing water pressure	>0.06Mpa <0.2Mpa
Application	carbonated drinks bottling plant
Total power (KW)	4.4kw	5.2kw	6.2kw	7.5kw	8.2kw
Overall dimensions	2.5*1.9m	2.8*1.9m	3.2*2.2m	3.4*2.5m	4.8*2.3m
Height	2.3m	2.5m	2.5m	2.5m	2.5m
Weight(kg)	3000kg	4500kg	6000kg	8500kg	10000kg

Different filling capacities
DCGF14-12-5 Bottle Carbonated beverage Filling Line Capacity:1500-2000 bottles per hour.
DCGF18-18-6 Bottle Carbonated beverage Filling Line Capacity:3000-5000 bottles per hour.
DCGF24-24-8 Bottle Carbonated beverage Filling Line Capacity:50000-7000 bottles per hour.
DCGF32-32-10 Bottle Carbonated beverage Filling Line Capacity:8000-10000 bottles per hour.
DCGF40-40-12 Bottle Carbonated beverage Filling Line Capacity:12000-15000 bottles per hour
DCGF50-50-15 Bottle Carbonated beverage Filling Line Capacity:16000-20000 bottles per hour Deatil description :
According to customer's water source analysis report and the final water standard required ,we will suggest customer
to choose the suitable water treatment plants.
Carbonated beverage mixing system structure reasonable, =mix precision is high, CO2 mixes fully, has two times of cooling, two carbonation merits. Mainly is suitable for kinds of carbonated drink's mix processing, also may use in the paste drink, the fermentation drink and so on other soft drinks' mix processing.
carbonated beverage bottling plant Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large Isobaric filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
As customer request and market demand ,we provide the better solution for the final product package ,
We have various kinds of options .Labeling machine have the PVC sleeve label ,BOPP hot glue label,Adhesive stick label ,Wet glue label ,and packing machine have the film shrink machine and carton box package.
We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .
This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
Turnkey Solution
Leadership in quality and technology from raw material to bottled carbonated beverage to selling products - Alps
A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
Company Introduction:
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification:
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.Welcome to visit us!
Tel : +86 13601560606

Sales Manager: RexYu
Zhangjiagang Alps Machine Co., Ltd.
Add: 19 Renmin Road, Zhangjiagang City, Jiangsu Province, China

---
