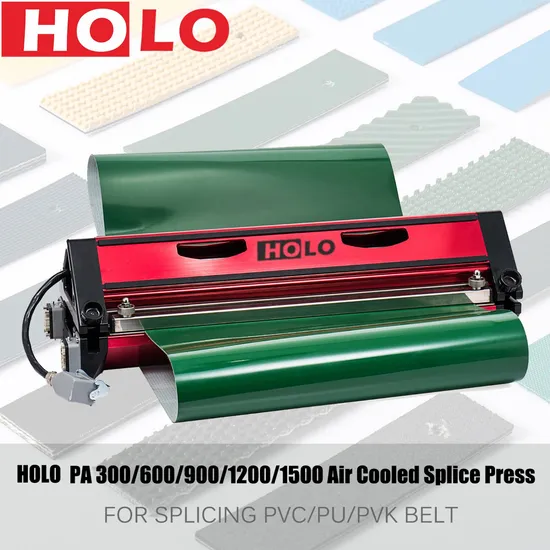

PVC Conveyor Belt Air-Cooling Vulcanizing Hot Press

Product Description

Machine Apperance:

Model	PA300	PA600	PA900	PA1200	PA1500
Effective Length	305mm	610mm	914mm	1219mm	1524mm
Effective Width	130mm
Max.Working Pressure	2 Bar / 28 PSI
Max,Temperature	200 ºC / 390 ºF
Power	1.2kw	3.2kw	4.5kw	5.8kw	7kw
Overall Dimension	505*250*220mm	805*250*220mm	1105*250*225mm	1405*250*225mm	1705*250*225mm
Total Weight	21kg	30kg	38kg	54kg	62kg
Machine&Flight Case Weight	39kg	52kg	66kg	80kg	95kg

Model	PA1500H	PA1800H
Effective Length	1524mm	1829mm
Effective Width	130mm
Max.Working Pressure	2 Bar / 28 PSI
Max,Temperature	200 ºC / 390 ºF
Power	7.5kw	9kw
Overall Dimension	1700*250*225mm	2005*250*225mm
Total Weight	100kg	121kg
Machine&Flight Case Weight	132kg	158kg

Machine YouTube Linkness: https://cnlong015.en.made-in-china.com
Application:
HoloBelt PA series ALL-IN-ONE air cooled press has all components integrated into the tool,
allowing a user to simply plug it into electricity and it is ready for use. Fast and Portable Splicing,
can be bring to anywhere for working easily.
Used for PVC PU PVK belt and thermoplastic belt materials etc.
Features:
1. FRIST BRAND IN CHINA MIANLAND.
2. Portable splice press, light weight and with filght case as standard packing, easily removed to anywhere for job site using.
3.Fast Splicing: heating & cooling time within 13 mins.
4.All-in-one design: integrated air-cooling system and also air compressor inside.
5.Temperature controller(EUROTHERM), time controller(EUROTHERM) and air pressure(SMC) controller are imported.
Detailed Images:

Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date.
During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality.
Parts damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
HoloBelt Machines Collocation Solutions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training,
Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Workshop Show:
*Conveyor Belt Cutting Slitting Machine
*Conveyor Belt Ply Separator Splitting Machine
*Conveyor Belt Punching Finger Machine
*Conveyor Belt cooled hot press splicing Machine
*Conveyor Belt Welding Machine
*Conveyor Belt Vulcansied Machine
*PU PVC Rubber Conveyor Belt for sell
Welcome to visit our website to view details: cnlong015.en.made-in-china.com
Any interests, pls feel free to contact me:
Contact Number:+86-17306879856
Contect person: Levin

---
