C6128B bench metal lathes machine mini manual lathe

Product Description

Product Description
Features:
1. Precision ground and hardened bed ways.
2. With 3 jaw chuck and 4-position toolpost.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 125-2000rpm.
6. With or without machine stand according to requirement.

Model	C6128Bx610
Max. swing over bed	Φ280mm
Max. swing over cross slide	Φ150mm
Distance between centers	610mm
Width of bed	180mm
Spindle bore	Φ26mm
Taper of spindle bore	M.T.#4
Range of spindle speeds	125-2000rpm
Taper of tailstock quill	M.T.#3
Metric threads can be cut	0.1-3.5mm
Inch threads can be cut	8-35TPI
Range of longitudinal feeds	0.1-0.25mm/rev
Max. travel of cross slide	110mm
Max. travel of top slide	70mm
Max.travel of tailstock quill	80mm
Motor power	750w
Packing size(L*W*H)	1320mm×650mm×610mm
N.W/G.W	218kg/258kg
Foot stands(L*W*H)	280mm×390mm×600mm
Foot stands(N.W/G.W)	52kg/56kg

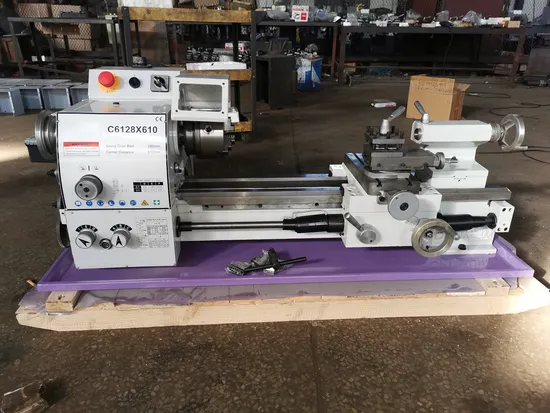

Detailed Photos
Standard Accessories · 3-jaw chuck,
· Dead center
· Change gears set
· Tool box and tools
Optional Accessories · 4-jaw chuck
· Machine stand
· Steady rest
· Follow rest
·Live center
· Toolpost cover
· Chasing dial indicator
· Chuck guard
· Leadscrew guard
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
