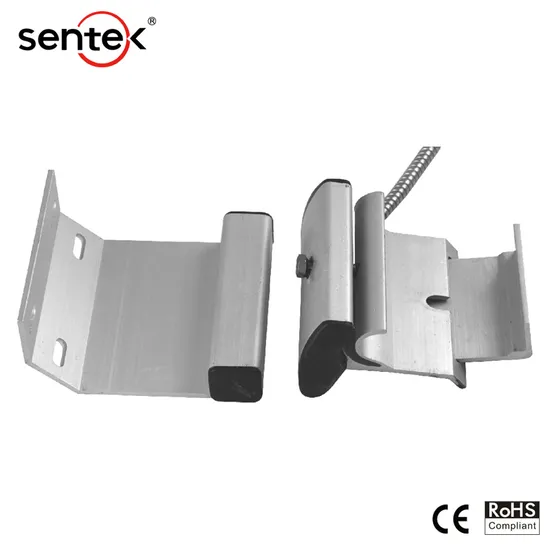

Tane66wg Track Mounted Metal Door Contact Burglar Alarm

Product Description

Tane66wg Track Mounted Metal Door Contact Burglar Alarm

Product Features:
*Designed for panel or sectional style overhead doors
*Integrated multi position adjustable magnet bracket
*Reversible probe assembly
*Left or right installation
*22" armored cable, longer available
*Hinge design for tighter clamping to track
*Self-drilling screws included for easy installation
*No special tools required for installation

Tane66wg Track Mounted Metal Door Contact Burglar Alarm
Dimension (Unit:mm)
Specification:

Part Number	Loop Type	Reed Form	Closed Gap [Inch(mm)]	Departure Gap (Inch (mm) )	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BSD-3016	Closed	N/O	2.5(63)	2.65(67)	0.20	10	100	0.5
BSD-3016A	Open	N/C	2.5(63)	2.6(66)	0.20	3	30	0.2
BSD-3016C	Closed & Open	SPDT	2.5(63)	2.6(66)	0.20	3	30	0.2
BSD-3016D	DPDT	2SPDT	2.5(63)	2.6(66)	0.20	3	30	0.2
