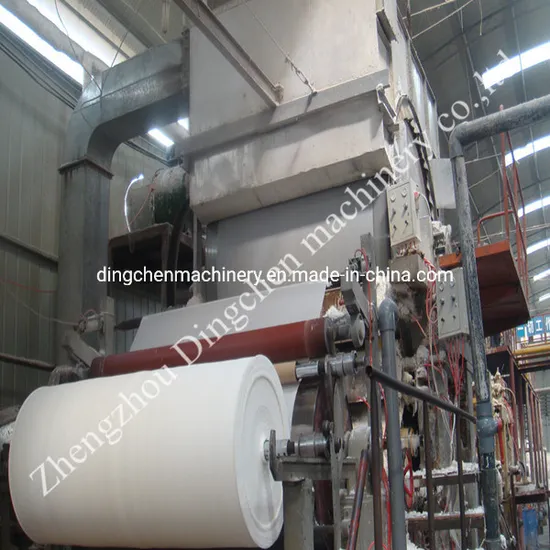

China 787mm Waste Paper Recycling Toilet Tissue Paper Making Machine

Product Description

Henan 787mm waste paper recycling toilet tissue making machine
I.Technical parameter:
1.output paper :tissue paper & toilet paper & napkin paper ;
2. raw material: waste paper or wood pulp ;
3.capacity: 1 t/d;
4. net paper width: 950mm;
5.wire width: 1100mm
6.output paper weight: 13-30g/m2;
7. rail gauge:1400mm;
8. drive way: adjustable-speed motor;
II. The main structure:
1.cylinder section
2.dryer section
3.Winding section
4.Rewinding section
5.Boiler section
III. all equipments :
1.Cylinder mold
2.Cylinder mold box
3.Dryer can
4.Drive gear
5.Scraper blade
6.Couch roll
7.Touch roll
8.Dryer hood
9.500mm axial-flow ventilator
10.Winding drum
11. 33 type roots vacuum pump
12.Vacuum box
13.1.5m3 High consistency hydrapulper
14.0.9m2 High frequency vibrating screen
15.35m3 Bleacher (include drive part)
16.0.3m2 centrifugal screen
17.380mm double disc pulp refiner
18.Sand remover
19.Electrical operation cabinet
20.Cylinder mold wire
21.500mm propeller
22.felt
23. 4'' white water pump
24. 3'' pulp pump
25. 2'' pulp pump
26. Rewinding machine
27. Paper cutting machine
28. Sealing machine
29. Boiler

NO.	Item
1	cylinder section
2	Cylinder mold box
3	Dryer can
4	Drive gear
5	Scraper blade
6	Couch roll
7	Touch roll

8	Dryer hood
9	500mm axial-flow ventilator
10	Winding drum
11	33 type roots vacuum pump
12	Vacuum box
13	1.5m3 High consistency hydrapulper
14	0.9m2 High frequency vibrating scree
15	35m3 Bleacher (include drive part)

16	0.3m2 centrifugal screen
17	380mm double disc pulp refiner
18	Sand remover
19	Electrical operation cabinet
20	Cylinder mold wire
21	500mm propeller
22	felt
23	4'' white water pump

24	3'' pulp pump
25	2'' pulp pump
26	Rewinding machine
27	Paper cutting machine
28	Sealing machine
29	Boiler

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
