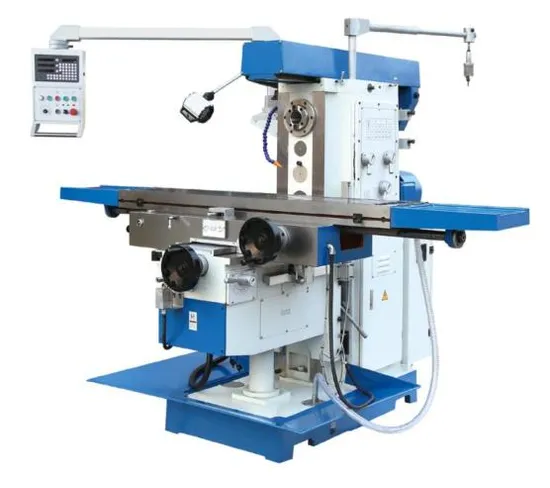

High Precision Universal Horizontal Milling Machine XL6036c/XL6036cl

Product Description

HORIZONTAL MILLING MACHINE XL6036C/XL6036CL
Feature :
DRO is optional accessories.
Table 3 axes are controlled by one servomotor,torque large,energy efficiency ,safe and reliable.
Vertical milling head is standardaccessory with the speed rangeof 0-600r.p.m.
Specification:

Model No.	XL6036C	XL6036CL
Item No.
Specifications
Table size	1325X360 mm	1600X360 mm
Table Travel (X/Y/Z)	1100/320/450 mm	1300/320/450mm
Table feed(X/Y/Z)	8 steps 30-750/20-500/15/375 mm/min
Table rapid feed (X/Y/Z)	1200/800/600 mm/min	1200/800/600 mm/min
T-slots ( NO.Width/Pitch)	3/18/80 mm	3/18/80 mm
Arm travel	500 mm	500 mm
Spindle
Spindle taper	7:24 ISO50	7:24 ISO50
Distance between spindle nose and table	20-470 mm	20-470 mm
Distance from spindle axs to arm	175 mm	175 mm
Horiontal spindle speed range	12 steps 60~1800 rpm	12 steps 60~1800 rpm
Other
Main motor power	5.5 kw	5.5 kw
Torque of X/Y/Z axis AC servo motor	15 N.m	15 N.m
Overall size	2245x2100x1870 mm	2520x2100x1870 mm
Net weight	2500 kg	2550 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
