Cross Cut Carboard Shredder Strip Carton Cutting Machine

Product Description

Cardboard Cutting Carton Shredder Paper Shredders For Cardboard Shredding Cardboard Shredder
pls contact Tina for more details
Product Description: Carton shredder is very useful equipment when recyclers or paper manufacturers are handling with waste cardboard or waste cartons, paper. When cardboard packaging is unusable any more, it can be recycled. Use carton shredders to shred the cardboard into small pieces which can be more easily processed.

The shredded material can be either sucked to shredding fan and blower for further shredding or transferred directly into a horizontal baling machine for compacting. Carton shredders reduce the material size significantly.
The compressed cardboard bales made by the horizontal baler with shredded material are very tidy and unified, and of high density as well. With this equipment, it will help to save you time, money, space and increase working efficiency because cardboard packaging is usually very bulky and takes up space.
Parameters:

Model No.	SL-325	SL-425
Width of Cutting the material	325mm	425mm
The thickness of the input	20mm	20mm
Shredding shape	5×60mm (or 5mm bar)	5×100mm(or 5mm bar or 3mm bar)
The thickness of shredding	3-5 layers corrugated (20-40 pieces A4/70g paper)	5-7 layers corrugated (20-70 pieces A4/70g paper)
The speed of thredding	12m/min	12m/min
Noise (db)	60	60
Voltage	220v,50hz	380v,50hz
Power	1.5kw	2.2kw
Machine size (L*W*H)	500*355*800mm	700*680*970mm

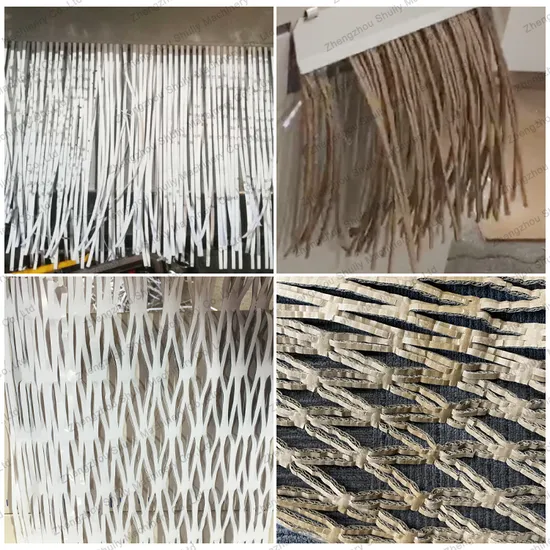

Cutting shapes:
Advantages:

• Sturdy and reliable.
• Wear-resistant and long lifetime
• Renewable cutters with harden alloy steel.
• Low speed and low noise
• High torque and high throughput
• Overload protection and reversible rotary.
• Less downtime and low operation cost.
• Easy maintenance.
FAQ:
1. What are the cutting methods?A. There are two shapes of mesh and strip.2. Can customers change this knife by themselves?A. Yes, customers can change the tools by themselves.3. What is the voltage of 325 and 425?A.The 325 model product is 220v 50hz single-phase electricity. The 425 model product is 380v 50hz three-phase electricity.4. Can the voltage be changed?A. Yes, but 425 can be changed to other voltage three-phase power, but it is best not to change to single-phase power, or the work efficiency is not good.5. Can the plug of the product be replaced?A. It can be replaced, just provide the picture of the plug.6. Can the cut mesh size be changed?A. Yes, it can be changed.

---
