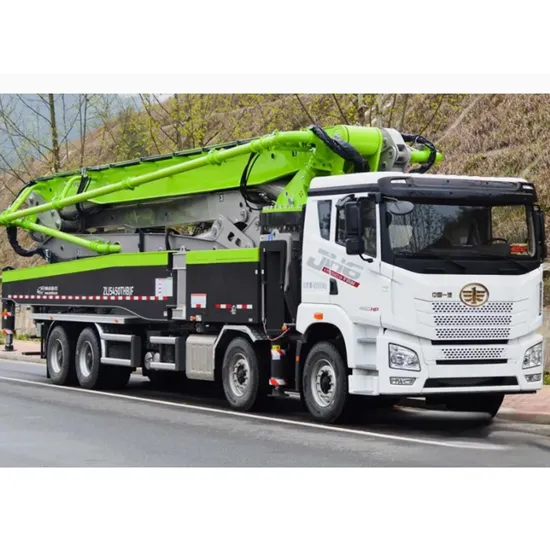

Zoomlion 49m 38m 49X-6rz-3 Concrete Pump Truck Price Truck Mounted Pump for Concrete

Product Description

Product Brief Description;
1. Boom with damping technology
2.Stabilization control on boom
3. Multilingual man-machine interface system
4. PWM+CAN dual communication mode remote control
5.Pumping flexible active control technology
6.CE certified and fully complying to all EU safety standards
Parameter Specification:

Model NO.	ZLJ5339THB	Type	Concrete Pump
Shotcrete Type	Semi-Dry	Machining Process	Hydraulic
Structure	Cylinder Type	Productivity	140/90 M3/H
Feeding Height	1370mm	Vibrating Amplitude	2.6mm
Certification	ISO9001: 2000, CE	Power Type	Diesel
Power	300kw	Axle Config	3
Chassis Model	Actros 3341	Horizontal Reach	45m
Vertical Reach	49m	Theor. Concrete Uotput	140/90 M3/H
Boom Section	5	Max.Hydraulic Pressure	360bar
Concrete Press	7/11 MPa	Specification	12000*2530*3980mm
Weight	32870kg	Condition	Used

Key Features:
Compact in design, 49m pump mounted on a 3-axle truck.
Efficient pump unit, ideal for long time use.
Agile placing boom with 5 arms with unfolding height 9.5m only,which gives a wide work range.
One side lateral support enables to work in narrow sites.
Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data,management,real-time diagnostics, alarm logging, and seProduct Brief Description;
1. Boom with damping technology
2.Stabilization control on boom
3. Multilingual man-machine interface system
4. PWM+CAN dual communication mode remote control
5.Pumping flexible active control technology
6.CE certified and fully complying to all EU safety standards
Parameter Specification:

Model NO.	ZLJ5339THB	Type	Concrete Pump
Shotcrete Type	Semi-Dry	Machining Process	Hydraulic
Structure	Cylinder Type	Productivity	140/90 M3/H
Feeding Height	1370mm	Vibrating Amplitude	2.6mm
Certification	ISO9001: 2000, CE	Power Type	Diesel
Power	300kw	Axle Config	3
Chassis Model	Actros 3341	Horizontal Reach	45m
Vertical Reach	49m	Theor. Concrete Uotput	140/90 M3/H
Boom Section	5	Max.Hydraulic Pressure	360bar
Concrete Press	7/11 MPa	Specification	12000*2530*3980mm
Weight	32870kg	Condition	Used

Key Features:
Compact in design, 49m pump mounted on a 3-axle truck.
Efficient pump unit, ideal for long time use.
Agile placing boom with 5 arms with unfolding height 9.5m only,which gives a wide work range.
One side lateral support enables to work in narrow sites.
Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data,management,real-time diagnostics, alarm logging, and service interval notice.
Rich in configurations and high quality components.
Boom with damping technology.
Stabilization control on boom.
Multilingual man-machine interface system
Applications:
It is not only suitable for high-rise buildings, but also for underground buildings and other large concrete structure construction, such as the construction of Bridges and tunnels, which is very suitable for the requirements of modern construction sites and very efficient in concrete construction.
rvice interval notice.
Rich in configurations and high quality components.
Boom with damping technology.
Stabilization control on boom.
Multilingual man-machine interface system
Applications:
It is not only suitable for high-rise buildings, but also for underground buildings and other large concrete structure construction, such as the construction of Bridges and tunnels, which is very suitable for the requirements of modern construction sites and very efficient in concrete construction.

---
