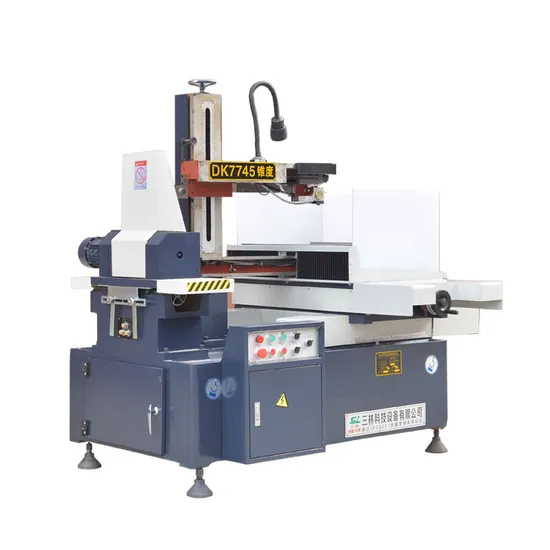

Customizable EDM Wire Cutting Machine with 1-Year Core Warranty

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Company Profile
Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. stands as a trailblazing high-tech enterprise, seamlessly weaving together production, pioneering research and development, and sales of cutting-edge CNC machinery and equipment. With decades of expertise driving the machinery industry, Sanlin's core offerings include state-of-the-art vertical machining centers, high-speed machines, gantry machining centers, drilling and tapping centers, engraving and milling machines, gantry engraving and milling machines, as well as medium and fast wire cutting machines, small hole machines, and sanding machines. Exceptional quality and intricate craftsmanship consistently earn the admiration and loyalty of our esteemed clientele. Our advanced equipment serves pivotal sectors such as automotive, aerospace, national defense, medical food machinery, rail transit, and metal mold production. Sanlin's illustrious products reach every corner of our nation, with select items gracing markets in Southeast Asia, Europe, Africa, and beyond. Sanlin holds steadfast in its commitment to relentless improvement, delivering superior products to its users. We warmly invite customers and partners to engage in fruitful collaboration!
FAQ
A: Indeed, we are manufacturers, and we warmly welcome you to explore our facilities. A: To select the ideal machine, align the worktable travel and cutting thickness with your workpiece dimensions. Ensure our machines meet your precision and roughness criteria; our TRS series boasts greatly enhanced precision and a superior finish. A: Absolutely, inform us of your required voltage, and we will accommodate the change. A: We offer free replacement of damaged parts within the warranty period, and cost-priced replacements thereafter. Should issues arise, expect prompt resolutions through video guidance or alternative methods.Q: Are you a manufacturer or distributor? Q: How can I choose the right machine for my needs? Q: Our country's voltage is three-phase 220V (or single-phase 220V, or another voltage), but the machine's voltage is three-phase 380V. Can you adjust the voltage to match ours? Q: What after-sales services are available?

---
