Basic Info.
Embroidery Area
500*1200mm
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Overall Dimensions
2530*1620*1650mm
Type
Flat Embroidery Machine
Application
Cap/Tshirt/Flat/3D/Towel/Leather/Jacket Embroidery
Production Capacity
10 Set/Sets Per Month
Product Description
Product Description

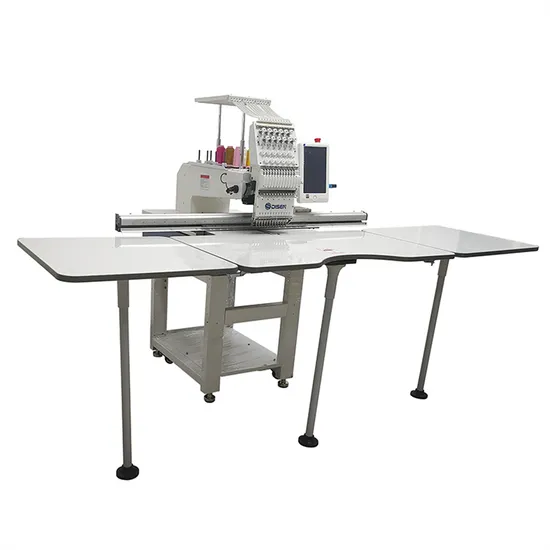

Specification MODEL: 1201L Single Head 12 Needles Embroidery Machine 1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2. Embroidery area: 500*1200mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface 4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5.Automatic thread trimmer 6. The running speed:100- 1200rpm 7. 280 degree Wide cap frame unit 8. Automatic color change and thread break detection 9. Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12. 10'' touch screen display control pannel, showing real time stitching 13. Memory size: 500 Patterns,200 Million stitches 14. Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15. USB port 16.Networkable And Wi-Fi capable 17. Control system can be updated easily
18. Multi-languages:, Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish
19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available 20.Equip With Laser Positioning 21.Woodencase Packing.
22.Machine Size: 2530*1620*1650MM 23.Net Weight:290KG
| Name | QTY. | Name | QTY. |
| complete machine | 1set | bobbin winder | 1set |
| body stand | 1set | owner's manual | 1pc |
| front working table | 1set | tool box | 1pc |
| cap station | 1set | needle | 1packs |
| cap framehoop | 2pcs | machine-oil | 1pc |
| cap driver | 1set | bobbin case | 1pc |
| round hoop 95mm | 2pcs | bobbin core | 2pcs |
| round hoop 145mm | 2pcs | power cable | 1pc |
| round hoop 190mm | 2pcs | needle plate screw | 2pcs |
| Square hoop 240*240mm | 2pcs | long flat nose pliers | 1pc |
Square hoop 335*335mm | 1pcs | forceps | 1pc |
pantograph 1650*450mm | 1pc | hexagonal socket wrench | 1set |
| hoop support | 1set | thread picker | 1pc |
| aluminum table support | 0pc | 4*25 inner hexagon | 2pcs |
| plastic table support | 1pc | 4*12 inner hexagon | 2pcs |
| flash diskUSB | 1pc | 4*8 cross screw driver | 2pcs |
| screw knife - | 1pc | 5.5-7 wrench | 1pc |
| screw knife + | 1pc | 8-10 wrench | 1pc |
| screw knife - 5x125 | 1pc | 17-19 wrench | 1pc |
| screw knife + 5x125 | 1pc | 22-24 wrench | 1pc |
| S#5.5mm | 1pc | scissors | 1pc |
Embroidery effect Enterprise Show
>>
