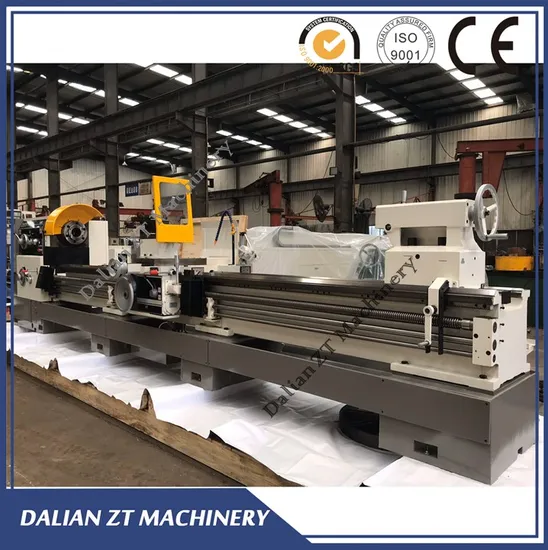

Large and light duty rubber roller turning lathe

Product Description

APPLICATIONS & FEATURES:
This series of machine tool is widely applied to the cutting operations of various spare parts, including
end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread,
diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling,
hole-reaming, jacketing, boring, groove-cutting, etc. Hard alloy tools may be utilized to cut the
screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare
parts machined via this machine tool can be IT8 and the surface coarseness may be 6.3μm.

Model	Unit	CW61103C CW62103C	CW61123C CW62123C	CW61143C CW62143C
Swing over bed	mm	1030	1230	1430
Swing in gap	mm	1290	1490	1690
Swing over cross slide	mm	700	900	1100
Distance between centers	mm	1500,2000,3000,4500,6000
Effective length in gap from face plate	mm	380
Spindle nose		C11 or D11
Spindle bore	mm	105,130 (optional)
Spindle speed/Step	rpm/steps	10-800/18		7-531/18
Cross slide travel	mm	615		715
Top rest travel	mm	300
Rapid traverse	mm/min	Z:3240mm; Z:1870mm
Tailstock quill diameter	mm	120
Tailstock quill travel	mm	270
Tailstock quill taper		MT6
Bed width	mm	610
Metric threads	mm/kinds	1-240/53
Inch threads	Tpi/kinds	30-2/31
Module threads	Mm/kinds	0.25-60/46
Diametrical pitch threads		60-1/2/47
Main motor power	kW	11
Gross weight of machine	kg	5200 5500 6350 7600 8800	5350 5650 6500 7750 9000	5550 5850 6700 7950 9200

Standard Accessories:
3-jaw chuck; dead center; reduction sleeve, foundation bolts;
Optional Accessories:
4-jaw chuck, face place, drive plate, steady rest, follower rest, electric turret
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.

---
