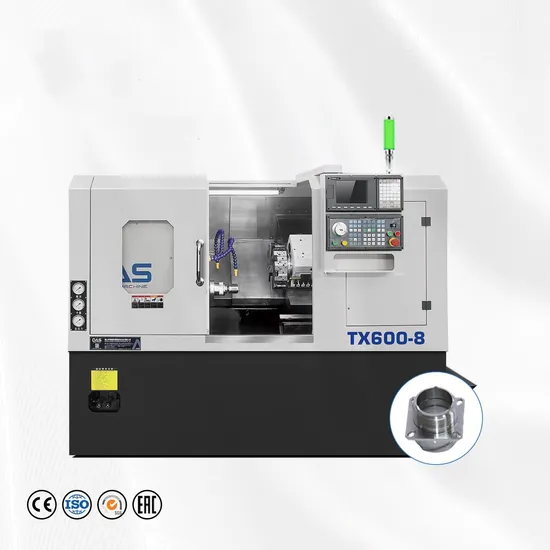

High Quality Turning and Milling CNC Lathe for Metal with Syntec System
US$39,690.00
1 Piece
(MOQ)
Basic Info.
Model NO.
TX600-8
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
CNC Controller
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
OEM
Accept
Brand Name
Das
Spindle Speed
0-3000r/Min
Tool Installation
12
Repeatability (X/Y/Z) (mm)
0.005
Dimension(L*W*H)
28*15.5*18m
Weight (Kg)
3800
Machine Power
16.3
CNC Control System
GSK/Fanuc/Syntec
After-Sales Service Provided
Video Technical Support
Machinery Test Report
Provide
Transport Package
Polywood Case
Specification
2800*1550*1800
Trademark
DAS
Origin
China
HS Code
8458110000
Production Capacity
1 Set
Packaging & Delivery
Package Size
28.00cm * 15.50cm * 18.00cm
Package Gross Weight
3800.000kg
Product Description
Condition: New
Type:Slant bed turret cnc lathe with hydraulic tailstock
Place of Origin:China (Mainland)
Brand Name:DAS
Control system:Taiwan Fanuc
X/Z axis motor brand:Japan
Ball screw and liner guide brand:HIWIN/PMI
Bearing brand: Japan
Max. Swing Diameter(mm):∮ 520
Max.turning diameter(mm):∮450
Max turning length(mm): 420
Spindle nose: A2-6(8'')
Spindle. speed(r/min):0-4500
Spindle bore(mm): ∮62
Spindle power(kw):6.5/7.5
Chuck size: 8''(about 219mm)
Auto feeding max.diameter(mm):∮52
Tool installation: 12 stations servo turret
X/Z axis travel(mm):260/430
X/Z axis motor power(mm): 1.8/1.8
X/Z axis fast moving speed(m/min): 26/26
X/Z axis repeatability(kw): ±0.005
Pump motor power(kw): 0.75
Machine total power (kw):16.3
Dimension L*W*H (mm): 2800*1550*1800
Net Weight(kg): 3800
Certification: CE ISO EAC
>>
