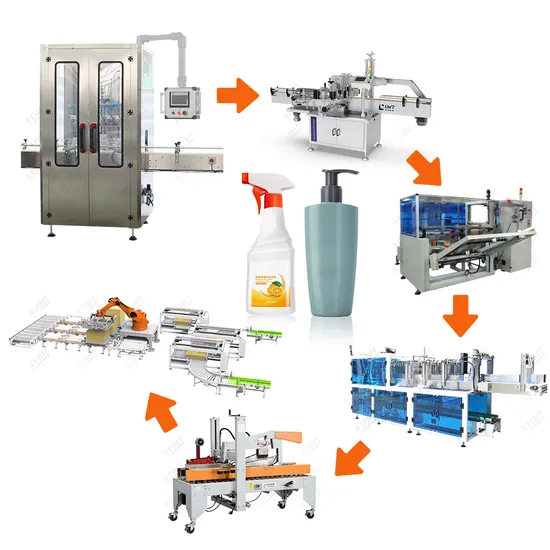

Factory Price Automatic Daily Hand Soap Filling Production Line Filling Machine

Product Description

Product Description
Filling Capping Packing MachineChocolate Sauce,Salad Dressing,Honey,Mayonnaise,Chili Sauce,Mushroom Sauce,
Juice Drink Tomato Ketchup Canned Filling Machine
Filling Machine is widely used as sauces,foods etc,can fill hot sauce,tomato ketchup,honey,jam,mushroom sauce,mustard sauce,
pepper sauce,chili sauce,peanut butter,salad dressing,pulp-containing beverages and other liquid. Filling.

Note: 1. Welcome to my website! 2. Are you looking for Sauce/Paste Filling Machine? 3. Please Consult Us Immediately and we will help you at the first time!
Technical Parameters:

Model	LW--4A	LW--6A	LW--8A	LW--10A	LW--12A
Filling Volume	500ml can customize	500ml can customize	500ml can customize	1000-2500ml can customize	2500-5000ml can customize
Air Consumption	120L/Min	140L/Min	160L/Min	280L/Min	300L/Min
Total Power	AC380V, 50/60HZ 1.4KW	AC380V, 50/60HZ 1.7KW	AC380V, 50/60HZ 2.1KW	AC380V, 50/60HZ 2.9KW	AC380V, 50/60HZ 3KW
Capacity	0--1920 bottles/h 500ml bottle as an example	1800-2520 bottles/h 500ml bottle as an example	2400-3360 bottles/h 500ml bottle as an example	3000-4200 bottles/h 500ml bottle as an example	3600-5040 bottles/h 500ml bottle as an example
Filling Heads	4	6	8	10	12
Material	SUS304	SUS304	SUS304	SUS304	SUS304

Accessories list:

Accessories name	Brand name
PLC	Siemens German
pneumatic element	AirTac Taiwan
amphenol connector	Weidmuller German
Bearing	IGUS German
Photoelectricity	KEYENCE Japan it is waterproof
Piston	Taiwan, heat-resistant, oil proof

Features: 1. Vacuum Preventing Leaking System
2. No Bottle or Lack of Bottle, No Filling System
3. Photoelectric Sensor, Mechatronics Filling Adjustment System
4. Photoelectric Sensor, Material Level Control Feeding System
5. Stainless Steel Frame,Plexiglass as Security Cover
6. Control System: PLC/Electronic-Pneumatic Controlled
7. Operation Panel: "Intelligent" Colorful Touch Screen
8. Filling Accuracy:+-5%
9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.
10.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor
Company Profile
FAQ
Q1:Are you manufacturer or trading company?
We are manufacture and we have our own design team.
Q2:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q3:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies, such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE,SGS,ISO.
Q4:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical drawing, but also can design new machine according to your requirements.
Q5:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q6: what we should know when you purchase the filling machine?
You should tell us what is your product you wanna fill? what is your filling type?filling the bottle,canned and so on.what is your speed requirement or how many quantity per minute you wanna fill?
Quick Quotation, Please Consult Us

---
