Yk-2500 Hydraulic Mill Roll Stand Machine From Yike Group

Product Description

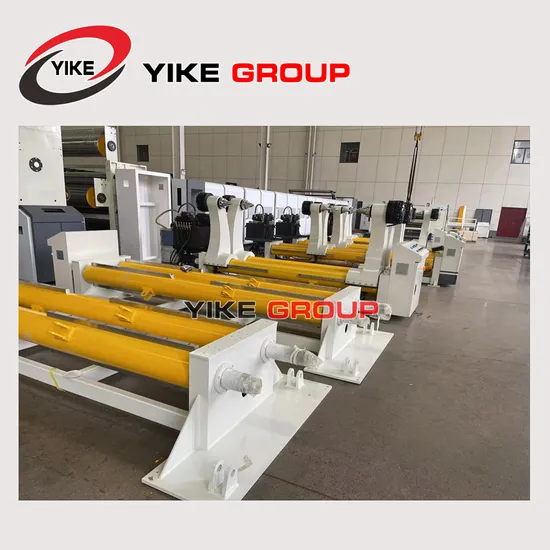

YK-2500 Hydraulic Mill Roll Stand Machine from YIKE GROUP
Technical parameters: 1,the range of clamping paper:MAX1800mm MIN1000mm
2,clamping diameters:MAX¢1500mm MIN¢350mm
3,main shaft diameter of paper holder:¢242mm
4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6
6,single weight:MAX4000Kg
Hydraulic system parameters
1.Work pressure(Mpa):16---18Mpa
2,lifting hydraulic cylinder:¢100×440mm
3,Clamping hydraulic cylinder:¢63×1300m
4,hydraulic station motor power:3KW --380V -- 50Hz
5,solenoid valve voltage:220V 50 Hz

Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
expand chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France
button	CHINT NP2series
Air switch	French
Pneumatic components	Zhejiang Sonor CSM
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang

FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian

---
