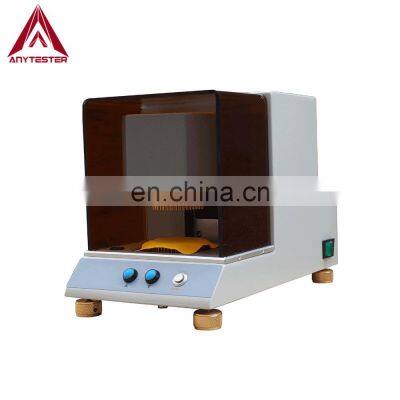

Product DescriptionAT107 Moisture Management Tester (MMT) is an equipment to measure the dynamic liquid transport properties of textiles such as knitted and woven fabrics in three dimensions:- Absorption Rate - Moisture absorbing time of the fabric’s inner and outer surfaces.- One-way Transportation Capability - Liquid moisture one-way transfer from fabric’s inner surface to outer surface- Spreading/Drying Rate - Speed of liquid moisture spreading on fabric’s inner and outer surfacesPrinciple:MMT consists of upper and lower concentric moisture sensors. The specimen is held flat under fixed pressure between the sensors while standard test solution is introduced on to the top surface of the fabric. Electrical resistance changes between the upper and lower sensors are then recorded dynamically on computer.MMT permits the measurement of the following indexes:- Wetting Time Top/Bottom (WTT/WTB)- Absorption Rate Top/Bottom (TAR/BAR)- Maximum Wetted Radius Top/Bottom (MWRT/MWRB)- Spreading Speed Top/Bottom (TSS/BSS)- Accumulative One-Way Transport Capacity (R)- Overall Moisture Management Capacity (OMMC)StandardAATCC 195SN/T 1689.1GB/T21655.2Note: For more standards, please contact usSpecificationModelAT107InterfaceWiFiOperation Temp & RH18℃ to 40℃, 20% to 80% (non-condensing)Pump On Time20secTest SolutionConductivity - 16 mS± 0.2 mSUpper Weight4.65N±0.05Power supply110V~230V 50Hz/60Hz 0.5 ADimensions(H) 240mm, (L) 320mm, (W) 200mmNet weight8kgDetails & Features★Shell all-metal structure, external interference signal has good anti-interference ability★Improving the structure of testing sensor, manual to automatic , the upper sensor, driven by a stepper motor built-in pressure testing equipment, to the fixed pressure automatically stop, can automatically return after the test ★Improving the structure of the pump water ,pump water uniformly stable, and can adjust pump water flow by software，Water pump can reverse pumping, make the liquid left in the pipe return to storage tank, prevent brine crystallization plugging silicone tube★The test results data can send to PC by WiFi, Graphical display of water droplets diffusion process, to make the perfect test report.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
