Product Details
Product Description
Product Description
Machine description:

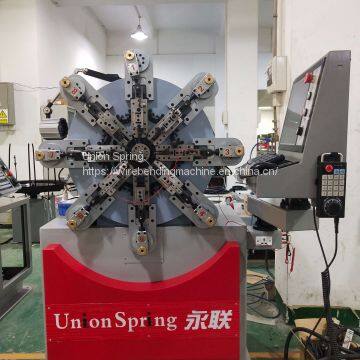

1. Camless spring machine with a unique camless and rockless arm design, the speed of adjustment than the traditional CAM machine is more than 50% faster. Fast production speed, accurate positioning, stable operation and strong expansion.
2. Independent control by multiple groups of servo motors, with the advantages of the traditional 8 position machinery, and also have a group of free hands, is able to move up and down, left and right, easier, faster and more accurate to produce difficult springs.
3. Intelligent module, automatic detection and alarm.Chinese and English display, easy to learn and use.
Specification:
Model
| US-236
| US-480
|
Axis
| 10
| 10
|
Wire Diameter
| 0.3-2.5mm
| 1.5-5.0mm
|
Wire Wheel Sets
| 2sets
| 3sets
|
Slide Axis
| 0.75KW*8
| 2.0KW*8
|
Wire Feeding Axis
| 2.0KW
| 4.4KW
|
Rotary Quill Axis
| 0.75KW
| 2.0KW
|
Machine Size
| 1200*1250*1760mm3
| 2200*2000*1850mm3
|
Machine Weight
| 980KG
| 2500KG
|
FAQ
1. Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
2. Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City. Guangdong province. When you arrive Shenzhen you can contact me,I will pick you up .
4. Q:How does your factory do regarding quality control?
A:Quality is priority. From material selection to machine completion, we will spend a lot of time to strictly monitor the operation of the machine. If the machine does not meet the quality we require, we will not ship it.
>>
