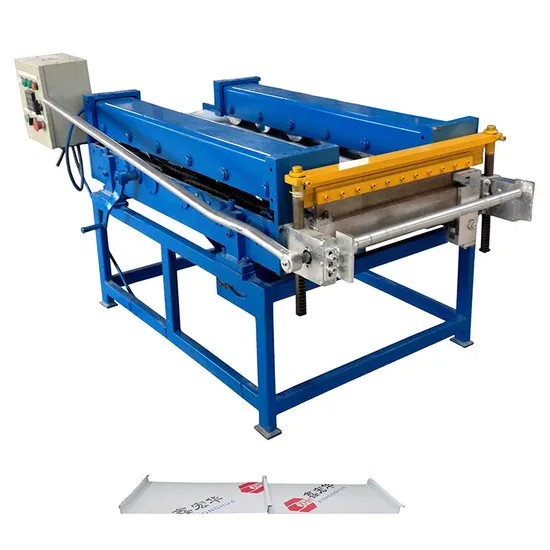

Sheet Metal Roofing Rolls Portable Standing Seam Machine for Sale

Product Description

1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
1.Profile Drawing:
for KLS25-220-530 standing seam roofing 220-530mm

2.Main Technical Data:
Size	KLS25-220-530
Dimension	2000*1300*1400mm
Weight	1200KGS
Motor Power	1.5KW
Hydraulic Power	0.75kw
Forming Steps	6 steps
Forming Speed	8-12m/min
Voltage	380V/50HZ/3PH
Effective Width	220-530mm
Material Width	290mm-600mm
Material of AL-Mg-Mn	0.4-1.0mm
Galvanized Sheet Thickness
Q235 Steel Sheet Thickness	0.5-0.8mm
Standing Height of Roofing	25mm
Thickness for common use	0.6mm, 0.7mm
and testing machine	(material: PPGI, GI, Aluminum)

3.Main Accessories: * Main Seamlock Roofing Forming Machine;
* Main uncoiler;
* Hydraulic System;
* PLC Computer Controlling System With Touch Screen;
* Hydraulic Forming Cutter;
* Tools;
* Operation Manual;

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.

Light Gauge Steel Framing Machine >>

CZ Purlin Roll Forming Machine >>

Standing Seam Metal Roofing Machine >>

- Company Profile -
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.

---
