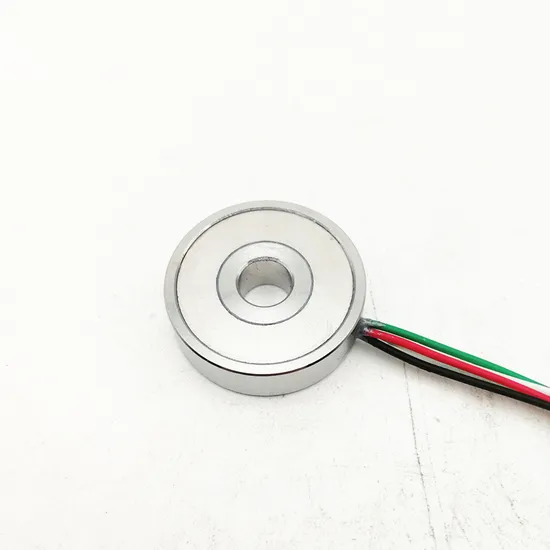

Brans Thru Hole Donut Load Cell 50n 100n 200n 500n 1000n (B113)

Product Description

Brans B113 ring type load cells is also thru-Hole (Donut) Load Cells are major players when measuring the tightening of load directly. Our Thru-Hole Series offers a variety of capacities and inner diameter sizes making it ideal for bolt fastening applications.
Products in use Thru-Hole/Donut Load Cell paired with Instrumentation.
Datasheet

Number	Specifications	Technique
1	Capacity	50,100,200,500N, 1000N
2	Rated output	2.0±20%mV/V
3	Zero balance	± 0.05mV/V
4	Non‐linearity	0.20%F.S.
5	Hysteresis	0.20%F.S.
6	Repeatability	0.20%F.S.
7	Creep(30min)	0.10%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	700±20Ω
11	Output impedance	700±10Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	5V
14	Maximum excitation	10V
15	Compensated temp range	‐10~60ºC
16	Operation temp range	‐20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	φ3×4000mm
20	Weight approx.	0.1kg
21	Material	Stainless Steel
22	IP Class	IP66

A variation of the compression load cells with a 'through-hole' design are made for installation around bolts or shafts. Fully welded stainless steel construction and high overload capability for optimum performance. Available capacity range is from 50N to 1000N with accuracy from 0.25% to 0.50%. Widely used for measuring of clamping forces, bolt loading and overload monitoring

This load cell is a variation of the compression load cell and features a through-hole design for use as a load washer to measure bolt loading, clamping forces, and overloads. Rugged stainless steel construction and reliable strain gage technology make this unit popular for a variety of industrial applications.
B113G:
Customized Ring type load cells, please come to Brans Technology. bransensor.en.made-in-china.com

---
