| US$100,000.00-550,000.00 | 1 Piece (MOQ) |

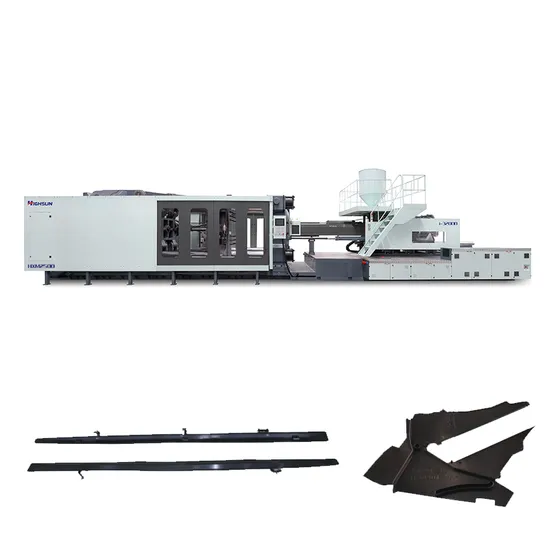

| MODEL: HXM2500 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 170 | 185 | 200 |
| SCREW L/D RATIO | L/D | 23 | 22 | 21 | |
| INJECTION CAPACITY IN THEORY | cm3 | 24059 | 28493 | 33300 | |
| INJECTION WEIGHT(PS) | g | 21894 | 25928 | 30303 | |
| oz | 772.2 | 914.5 | 1068.8 | ||
| INJECTION PRESSURE | MPa | 186 | 157 | 134 | |
| INJECTION RATE | g/s | 1424 | 1686 | 1970 | |
| PLASTICIZING CAPACITY | g/s | 127 | 170 | 220 | |
| SCREW SPEED | rpm | 65 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 25000 | ||
| MOVING MOULD-PLATE STROKE | mm | 1900 | |||
| MAX. MOULD HEIGHT | mm | 1800 | |||
| MIN. MOULD HEIGHT | mm | 800 | |||
| SPACE BWTWEEN TIE-BARS (W*H) | mm | 1850*1700 | |||
| HYDRAULIC EJECTOR FORCE | KN | 520 | |||
| HYDRAULIC EJECTOR STROKE | mm | 450 | |||
| EJECTOR NUMBER | n | 33 | |||
| OTHERS | PUMP PRESSURE | MPa | 17.5 | ||
| MOTOR POWER | KW | 47+47+47+47 | |||
| HEATING CAPACITY | KW | 170 | |||
| MACHINE DIMENSION (L*W*H) | m | 19.50*4.00*5.20 | |||
| MACHINE WEIGHT | t | 175 | |||
| OIL TANK CAPACITY | L | 3700 | |||
