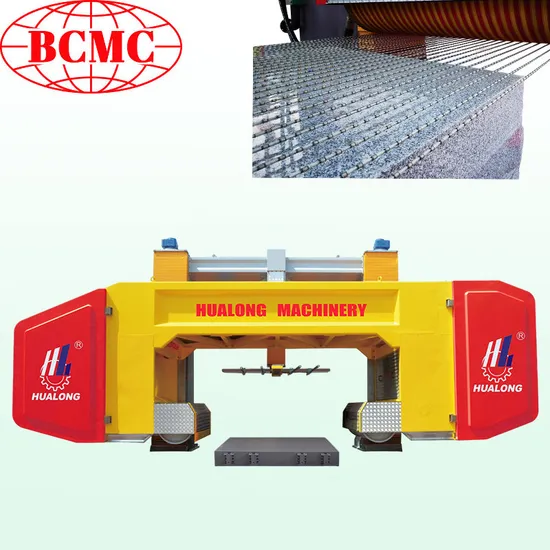

2025 Bcmc Wire Rock Saw Granite Block Cutting Machine Multi Wire Precise Cutter Frame Structure for Sale

Product Description

This is a kind of one time multi slab cutting machine which commonly used in quarry stone cutting. This technology is developed for the enhancement of productivity in the granite gangsaw industry, with saving on the cost of raw material sawn to the tune of 3% on an average of a granite block sawn.
The machine is in a firm structure. Stable and reliable when working. It cut the granite block with a number of diamond wires. The diamond wire is a cable with a diameter of 6.3-7.2 mm and on its surface are threaded diamond-impregnated beads. The diamond beads serve as an abrasive and are cooled and cleaned by water jets, the wasted material is also eliminated by the water.
The Multi Wire Saw enables better surface finish on the slab sawn & the biggest advantage is the low sawing cost. Further, there is an excellent cutting quality with accuracy and smooth cutting. There is also a good amount of saving on the power & water consumption.
If you are searching for a kind of machine which can cutting muti slabs in one time and that's what you want.
Main Features: Sturdy construction and excellent design concept which is beauty and useful. Multi slab cutting in one time. Efficient and precise. Available for different size of slab cutting. Abandon the traditional linear roller system and adopts high precision linear sliding track in an all-round way. More stable and reliable. Low repair and maintenance cost. Less water consumption and operating costs. Energy saving and environmental protection. Low working area requires. Parameter:

Model No.	BCMW-21U	BCMW-36U	BCMW-42U	BCMW-58U	BCMW-72U
Max. Number of Wire (pcs)	21	36	42	58	72
Length of Wire (m)	23	23	23	23	23
Diameter of Wire (mm)	6.3/7.2	6.3/7.2	6.3/7.2	6.3/7.2	6.3/7.2
Slab Thickness (mm)	20/30	20/30	20/30	20/30	20/30
Max. Cutting Length (mm)	3200	3200	3200	3200	3200
Max. Cutting Height (mm)	2000	2000	2000	2000	2000
Max. Wire Tension (kgs)	200/250	200/250	200/250	200/250	200/250
Wire Speed (m/s)	0-35	0-35	0-35	0-35	0-35
Main Motor (kw)	95	132	160	250	280
Water Consumption (L/min)	500	800	1000	1800	2300
Machine Length (mm)	11000	11800	11800	11800	11800
Machine Height (mm)	5900	5900	5900	5900	5900
Gross weight (kg)	30000	35000	45000	50000	65000

Detailed Information For Spare Parts:
* Driving system
* Tension system
* Lifting system
* Trolley moving system
* Speed and pressure regulator system
* Sprinkler system
* Lubricating system
Block Cutting
Cutting block into multi-slabs in one-time
Multi Wire Saw
Easy cutting stone into multi slabs in one time

Driving Wheel An enormous roller with a diameter of 2,20 metres and a peripheral speed of 35 m/s. The surface of the wheel is inlaid with a wear-resistant polyurethane rubber liner (dovetail groove) which is convenient for users to replace and maintain. So it reduces the maintenance cost.

Liners The surface of the driving wheel is inlaid with the wear-resistant polyurethane rubber liners to protect the roller and reduce the abrasion.

Supported Columns The structure of two columns strongly fixed to foundations and one connecting "W" structure, that have been built with wide closed section in large thickness normalized steelwork. All the structural parts have undergone structural checks in accordance with FEM (Finite Elements Methods). It ensures a high level of rigidity and no vibration.

Water supply on top & both sides Compared with the traditional granite cutting by gang saw, less water consumption is needed. Water jets cool and clean the diamond beads, and eliminate the wasted material also.

Block Trolley With trolley and ground rails system to transfer the blocks transversally, longitudinally, externally and internally. Help to convenient transfering huge blocks for operation.

Control Cabinet Split-type electric control cabinets with Immediate and intuitive touch screen operator interface for machine management. Among them, the main control cabinet is for controlling the main motor driving, diamond wire saw cutting speed adjusting etc. This design makes the operation more easily.

Contact us if you need any customize!
10, 21, 36, 42, 58, 72, 80, 82, 84 or 86 wires can be customized

---
