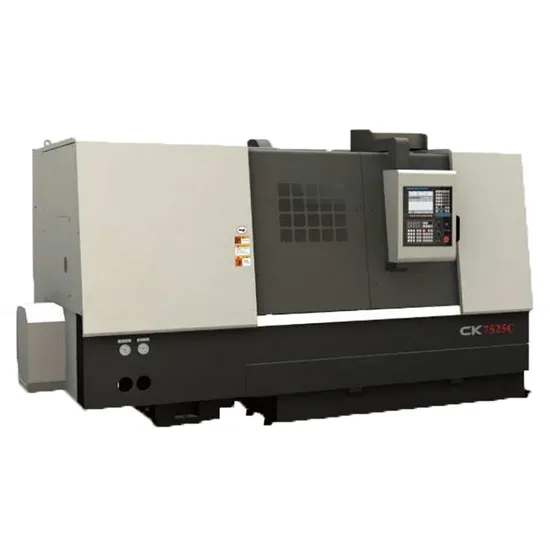

Horizontal CNC Lathe Machine Tool Ck75c, High Precision, Hot Sale, Simple Easy to Use

Product Description

Product Description
CK75C series CNC horizontal lathe is a full-function CNC machine tool with high rigidity, high precision, excellent accuracy retention, high production efficiency, good operability, beautiful appearance and ideal three-leak prevention effect.
The linear guide rail is used in two axes to improve its processing accuracy and high-speed feed performance.
Guangzhou CNC 988 FANUC Oi-TD, Siemens 810D, 802D and other CNC systems to achieve the two-axis control of the machine tool, can turn a variety of internal and external cylindrical surface, conical surface, arc surface, a variety of threads and drilling, expanding, ream, rolling and boring processing.

Product Parameters

Specifications
PARAMETERS
ITEMS	UNIT	CK7516C	CK7516G	CK7520C	CK7525C
				CK7520C/500	CK7525C/500
Capacity
Max. swing over bed	mm	Φ400	Φ400	Φ500	Φ550
Max. swing over slide	mm	Φ180	Φ240	Φ240	Φ280
Max. turning length	mm	400	400	750/500	1000/500
Max. turning dia.	mm	Φ285	Φ285	Φ370	Φ450
Max. bar dia.	mm	Φ42	Φ42	Φ51	Φ73
Spindle
Hydraulic chuck dia.	mm	Φ165	Φ165	Φ210	Φ254
Spindle nose (GB/T5900.1)		A2-5	A2-5	A2-6	A2-8
Spindle thru-hole	mm	Φ57	Φ57	Φ62	Φ87
Spindle speeds	r/min	55-5500	55-5500	40-4000	30-3000
Power of main motor(cont./30min)	kW	11/15	11/15	11/15	15/18.5 ()
					18.5/22 ()
Tailstock
Dia./travel of tailstock quill	mm	Φ70/80	Φ70/80	Φ90/100	Φ100/100
	MT No.	4/2	4/2	5/4	5/4
Taper of center of standard/live spindle structure
Feeds
Slant angle	DEG	45°	45°	45°	45°
X/Z travel	mm	165/410	165/410	210/780	250/1010
				210/550	250/550
X/Z rapid traverse rate	m/min	30/24	16/20	24/32	24/24
				24/24
Turret
Number of stations		12/8	12/8	12/8	12/8
Tool size (tuming/boring)	mm	20x20/Φ32	20x20/Φ32	25x25/Φ40	25x25/Φ40
Others
Power supply	kVA	35	35	35	50
Dimensions (L×W×H)	mm	2370×1670×1710	2370×1670×1710	3730×1990×1880	3785×1850×1930
					2940×1850×1850
Net weight	kg	3000	3000	4500	5000 4800

Detailed Photos

Equipped with a variety of
multi-station brick tower tool rest
High precision through hole spindle structure
Machine with high rigidity linear guide

---
