Automatic Liquor Filling Machine Factory for Brandy Tequila Rum Wine Red Spirits Wine Whiskey Vodka Bottle Filling Capping Machine

Product Description

Product Description

Full Automatic Palm Wine Overflow Vacuum Filling Machine Red Spirits Wine whiskey Vodka Bottle Filling machine
1.Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottleneck way.
2.Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
3.Filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4.The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.
Product Parameters

Model	PX-18-18-6	PX-18-18-6	PX-32-32-8	PX-40-40-10
Productivity (500ml/H)	3000-6000	6000-7000	8000-11000	11000-13000
Filling temperature (°C)	5	5	5	5
Filling pressure (MPa)	0.2-0.35	0.2-0.35	0.2-0.35	0.2-0.35
Power (Kw)	5	6	8	12
Overall dimension (m)	2450*1700*2300	2450*1700*2300	4400*2000*2300	4400*2000*2300
Weight (kg)	4000	5000	6000	9000

Real machine factory scene



Washing station
1. Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2. Optimum uptime: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4. Hygiene improvement through volume control and contactless filling

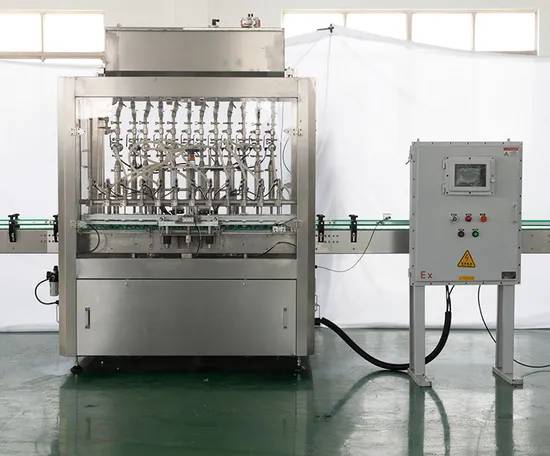

Filling station
1. 304/316 Stainless steel high precision filling nozzle 2. Filling volume adjustable in fine rank, same liquid level after filling 3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 4. 304/316 stainless steel filling pump 5. Efficient spray nozzle rinse thoroughly and save water for flushing
Capping station
1.All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which meet the national food hygiene standards. 2.The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle conveyor chain is not required to change the bottle shape.
WHY people like PAIXIE ?

To look how PAIXIE boys do
Compared with tradtional machinery , PAIXIE smart filler has below characters which are benefited to each customer operation experience :
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing .
2- 150mm width SS304 protection frame which equied with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection .
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting .
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly , protect custoomer's product quality .
5- Machines are deliveried as whole which solving the stress of after sell installation for customer . PAIXIE'S technicians are standing by all time for on-site service .
You may be warrying those ?
1- How can i fill so many formats my bottles with the machine perfectly withour complex adjusment ?
2- How can i understand your quality ?I do not want any kinds bad machine which failed to live up to my investment .
3- How can i know your machine life ? It looks always beautiful but only in your room .
4- How can i install such a big long machine by myself ? It looks never eaasy at all .
5- How can i recognize the real difference in chinese market ? So many suppliers quoted me every day !!!
6- What can i do if machines get broken in broken ? Who is gona to help me ?

---
