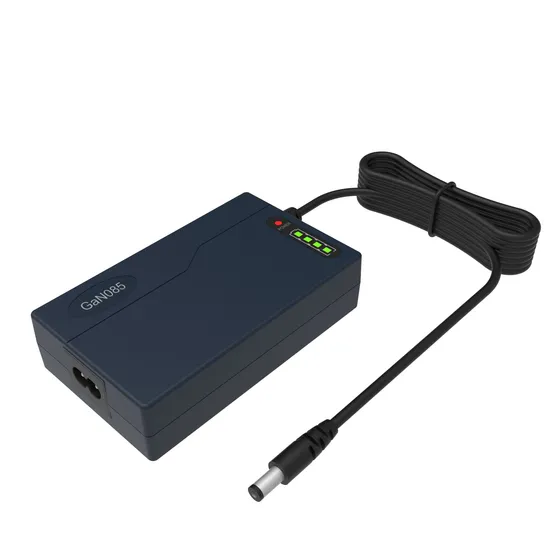

GaN 85W 12V~48V 2A~5A Li-ion Lipo LiFePO4 AGM Gel VRLA Battery Charger

Product Description

Product features:
GaN Based Power Supplies with Enhanced Digital Control, slim szie and hing effiency.
Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.
Suitable for 3 to 10 series Li-Ion / LiFePO4 batteries, 12V~36V Pb-Acid (SLA, VRLA, AGM, GEL).
Four segment green LEDs to indicate battery SOC (capacity level) during charging process
Multiple protections for overcurrent, overvoltage, and short circuit error.
Safety certifications, CCC, ETL, FCC, CE
Detailed technical indicators:
Rated input: 100~240V
Rated output: 12.6V~42V 85W, see the attached table for output voltage and current of each model
Suitable batteries: 10.8V~37V li-ion, LiFePO4 battery, 12V~36V lead-acid (VRLA, AGM, GEL) batteries
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 90% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ºC
Heat dissipation: natural cooling (without fan)
AC Input plug: AC inlet ICE-320-C8 type, AC cable / plug is optional part.
DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm, output wire AWG18, length 1.5m
Safety certification: CE, ETL, FCC
Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000
Dimensions Weight: 114 x 68 x 29mm/200g

---
