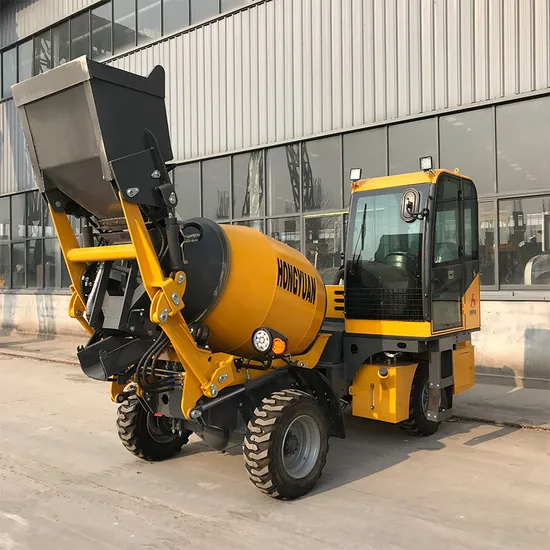

1m3 Model Mobile High Efficiency Self Propelled Mobile Concrete Mixer 1cubic Meter Per Batch Self Loading Concrete Mixer

US$12,400.00 1 Piece (MOQ)

Basic Info.

Model NO.
HY-250
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25m²/h
Feeding Height
1400mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Name
Self-Loading Concrete Mixer
Application
Concrete Mixer
Over Size
4400X2100X2900mm
Loader Control
Hydraulic 4 Way Stick
After-Sales Service Provided
Video Technical Support
Ceificate
CE/ISO
Keywords
Self Loading Concrete Mixer
Service
Overseas Engineers Available
Power
37 Kw
Transport Package
Nude Package
Trademark
Hongyuan
Origin
China
Production Capacity
200 Sets Per Year

Packaging & Delivery

Package Size
440.00cm * 210.00cm * 290.00cm
Package Gross Weight
3500.000kg

Product Description

Product Description
Advantages of self dumping mixer:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Name
Item
Specification

Net
3500KG
Transmission
Full Hydraulic
4 WD
Brake
Air Brake
Chassis
Off-road

Loader bucket
capacity
0.2m3

Control
Hydraulic
Tilt angle
30%

Speed
High
0-30KM/H

Low
0-9KM/H
Mini turning radius
6.5M/R
Tyre model
10-16.5
Engine
Type
Yunnei

Rated Power/RPM
42KW/2400RPM
Cylinder
4
Starter
Electric
Cooling type
water cooling

Maxing Drum
Output capacity
1.0M3
Bank Angle
16 °
Chute
Swing Angle
≥60°
Angle control
Manual
Loader control
Hydraulic 4 way stick
Over size
4400x2100x2900mm

Main Features:
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to Northern Europe(30.00%),Eastern Europe(28.00%),WesternEurope(24.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(2.00%),Oceania(2.00%),Eastern Asia(2.00%),Mid East(2.00%).There are total about 11-50 people in our office.2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?
Wheel Loader, Self Loading Concrete Mixer, Telescopic Loader,Telehandler, Sugarcane Loader,Site Dumper, Backhoe Loader, Tracked Carrier, All-terrain off-road Forklift, Motor Grader.4. why should you buy from us not from other suppliers?
We have more than 19 year's producing and exporting experiences of construction machinery and agricultural machinery. All the machine were produced by ourselves and we have very much learned about the strengths and weaknesses of these machines.5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;Accepted Payment Currency:USD,EUR;Accepted Payment Type: T/T,L/C;Language Spoken:English,Chinese
